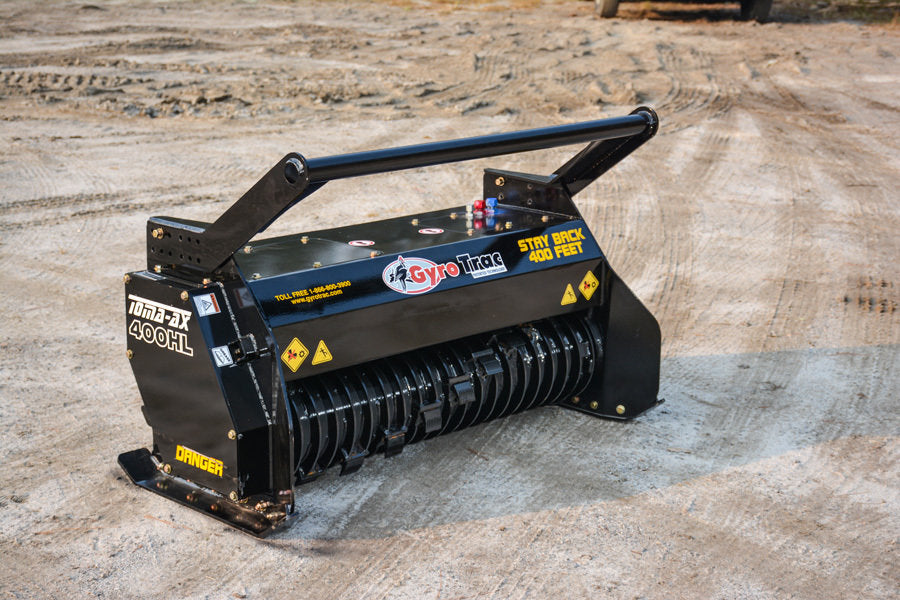

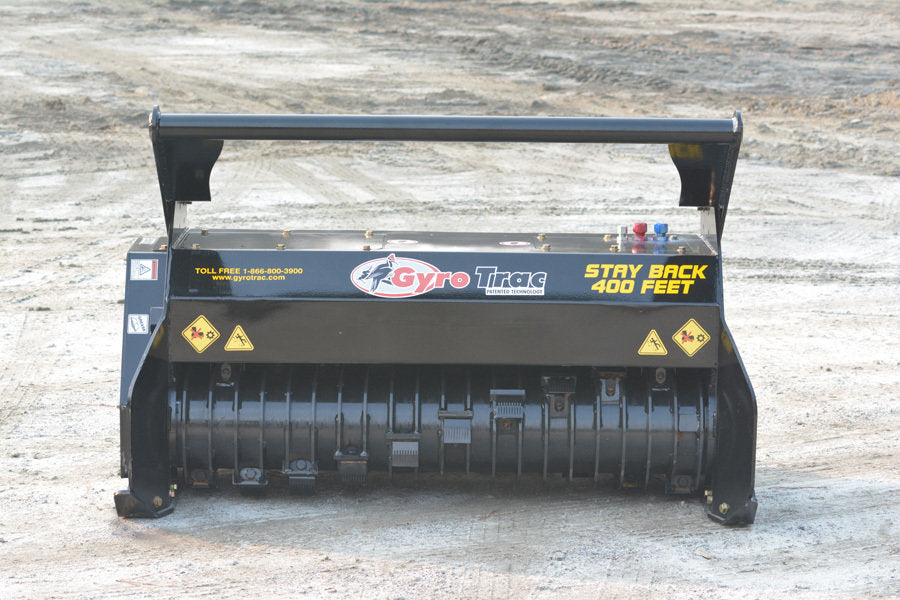

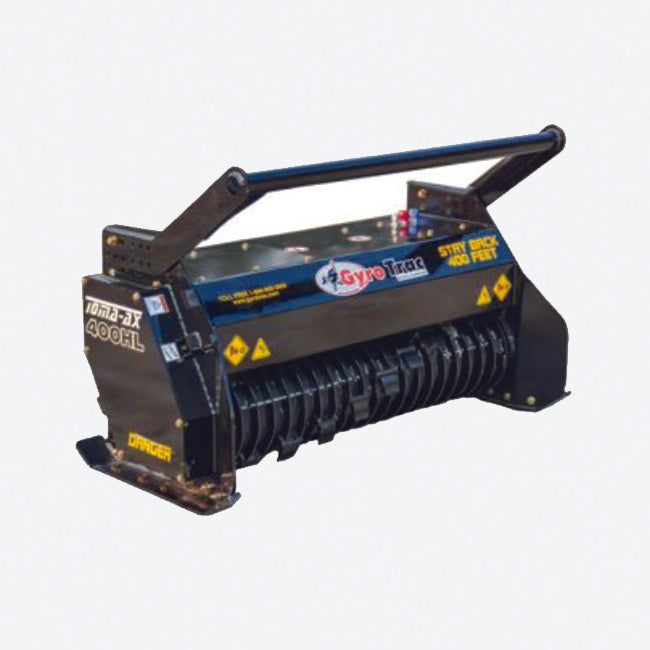

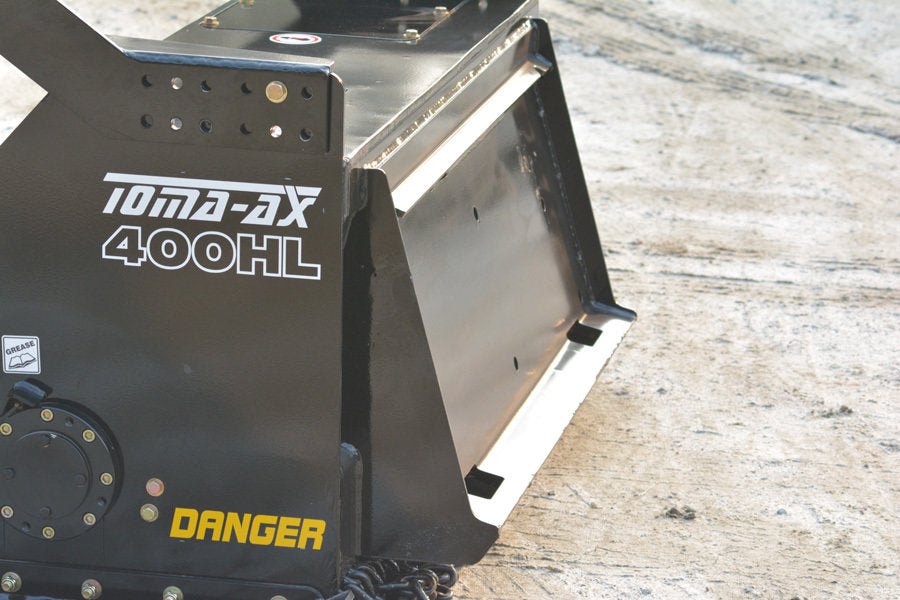

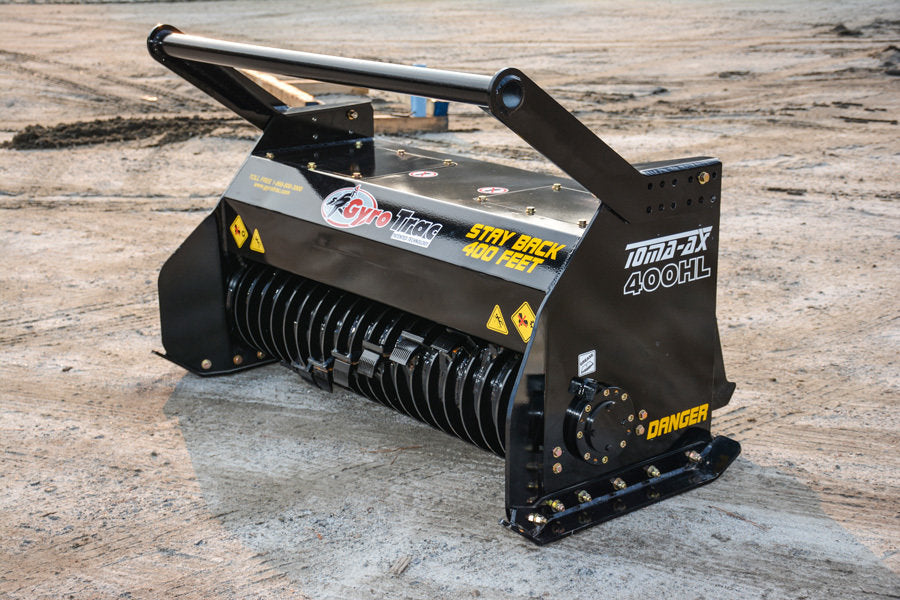

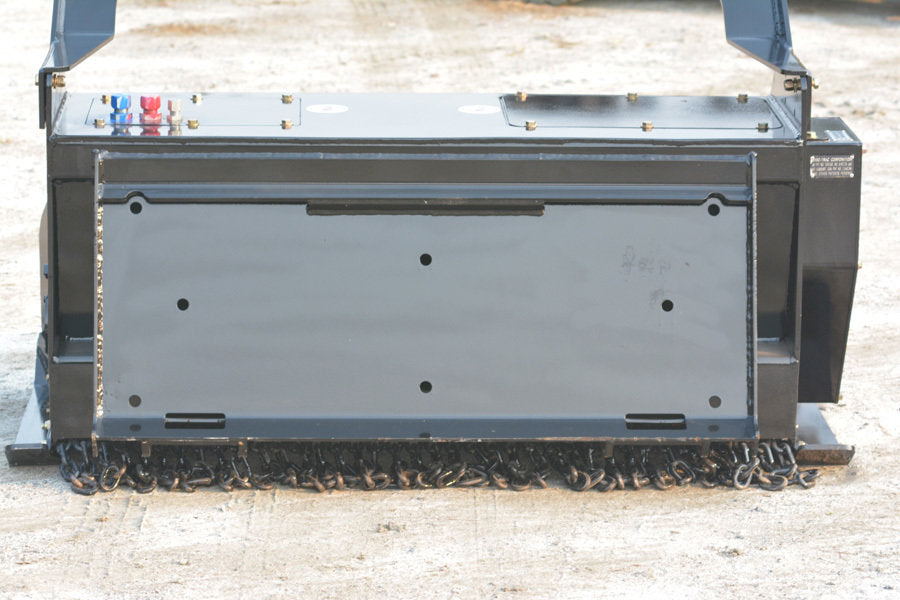

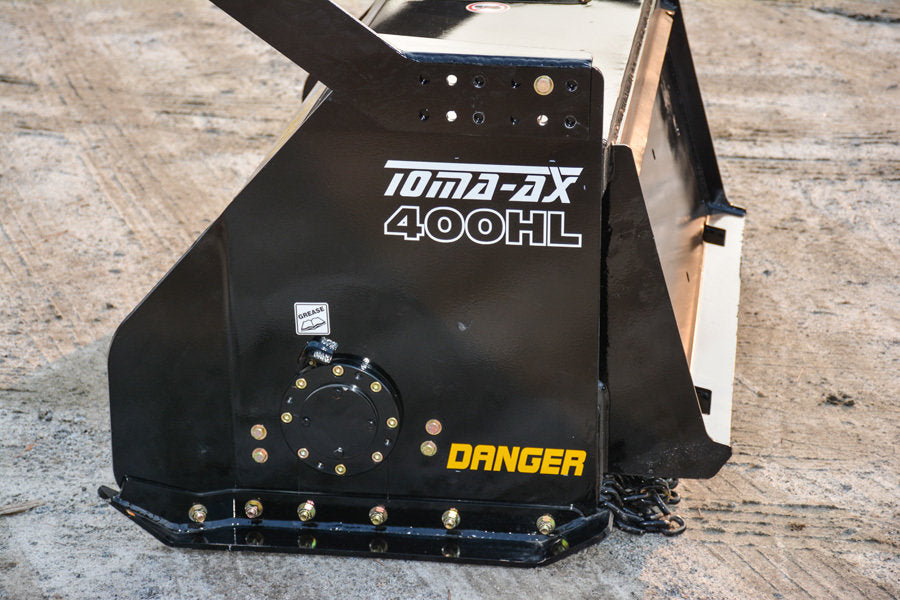

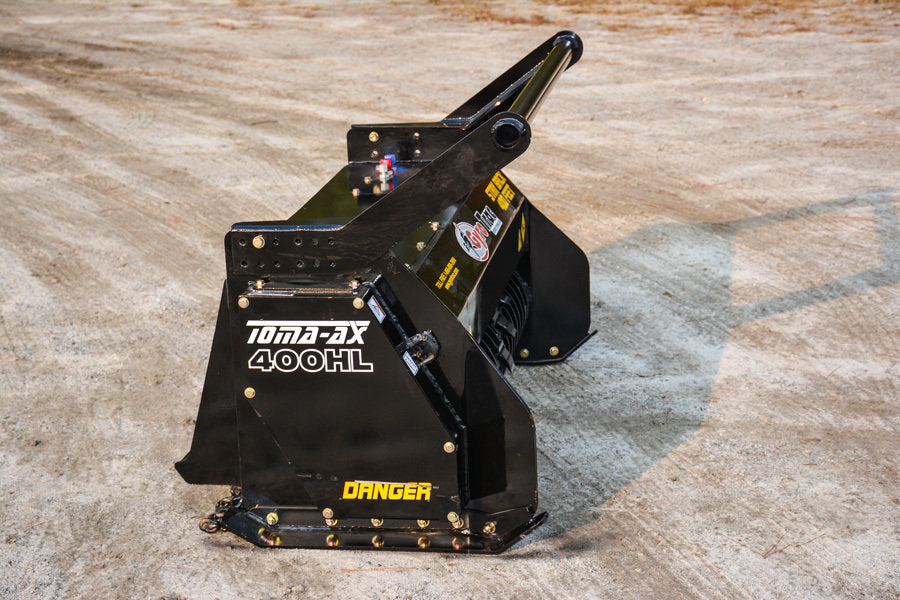

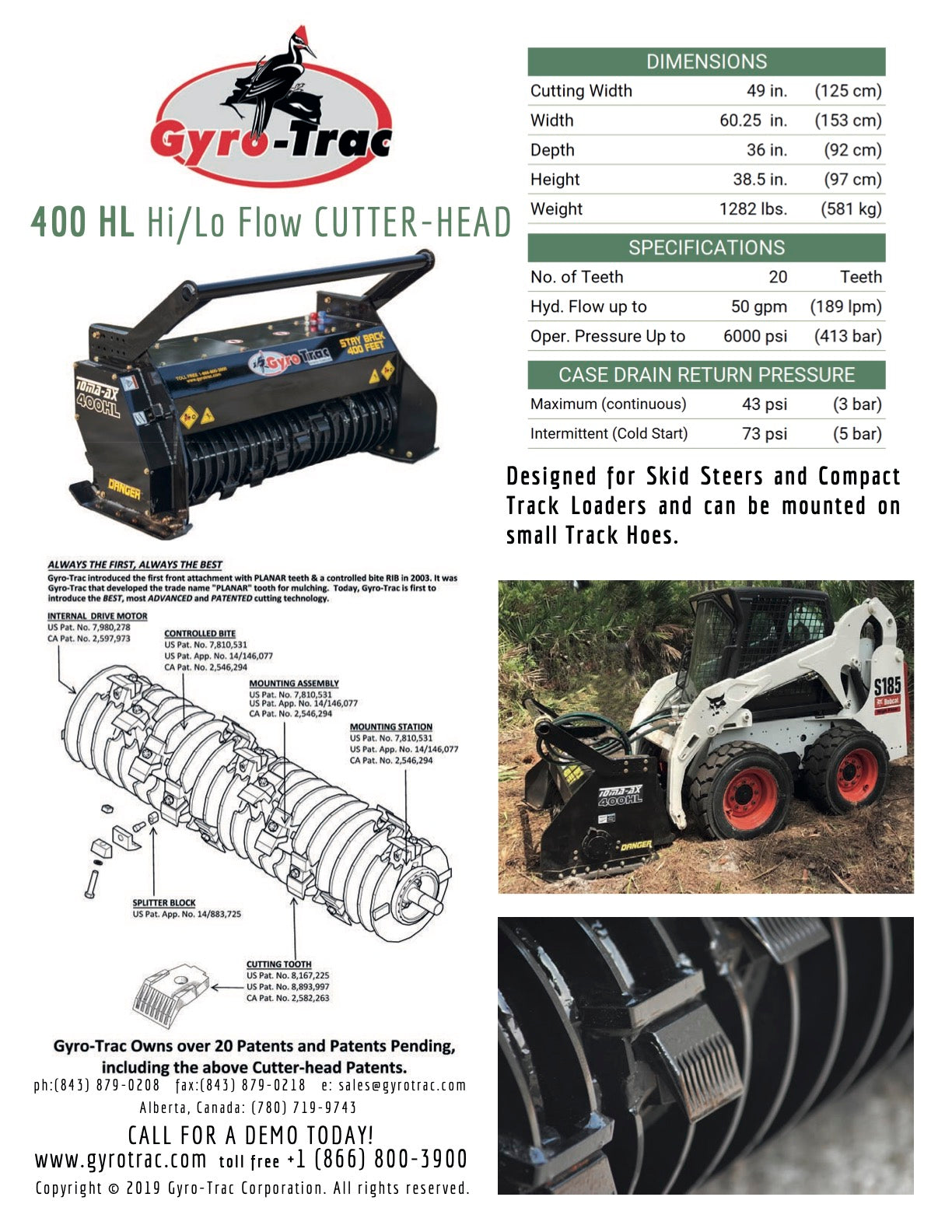

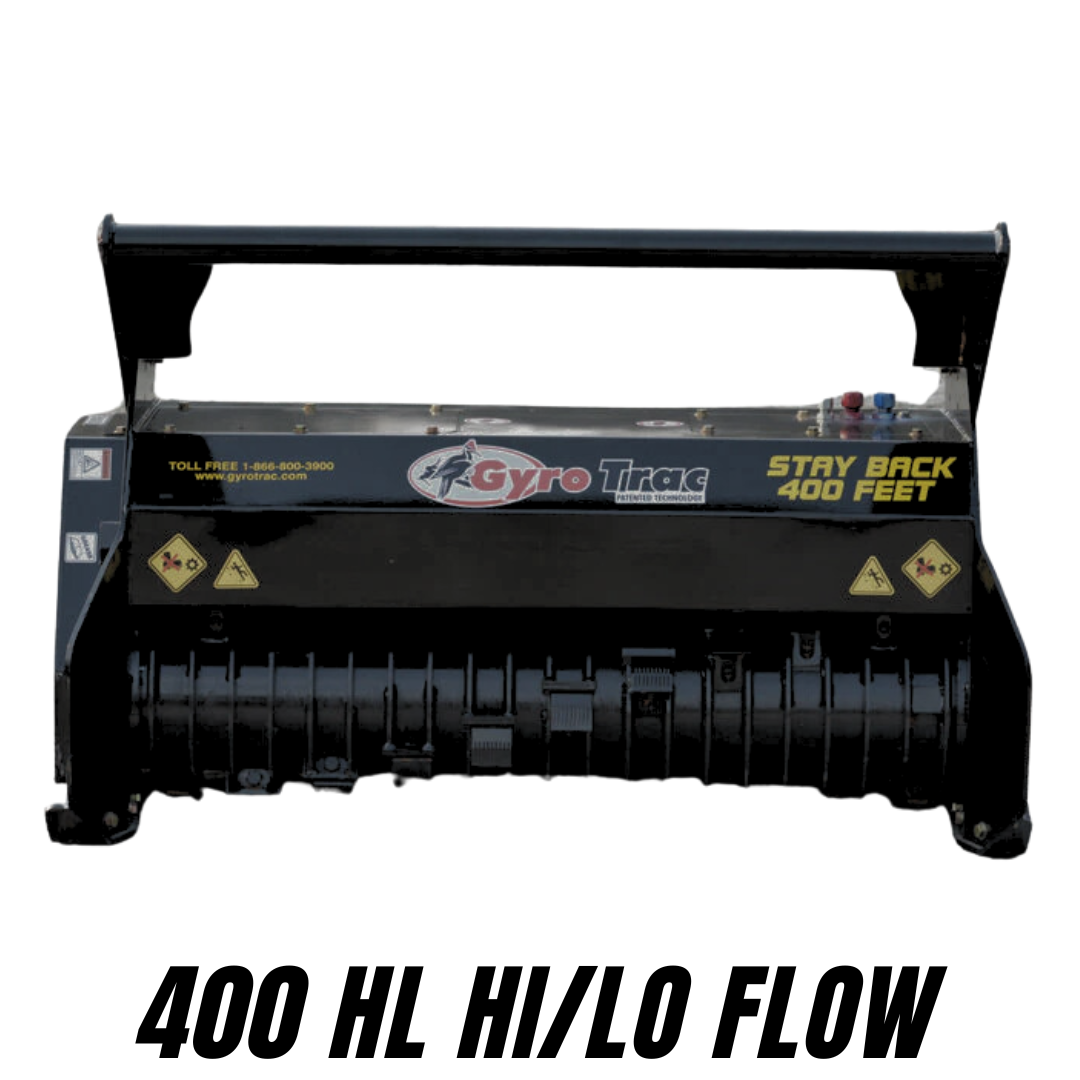

400 HL Hi/Lo Flow Cutter-head

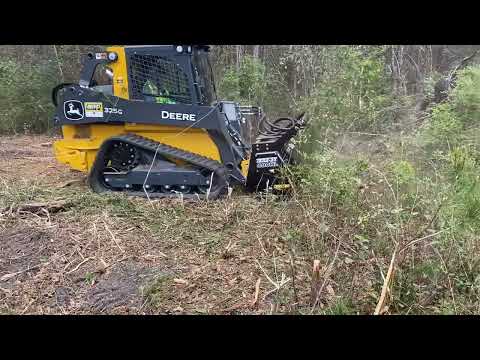

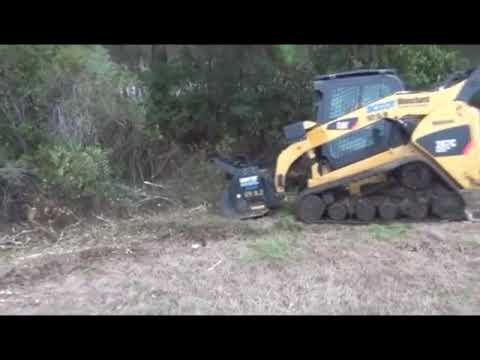

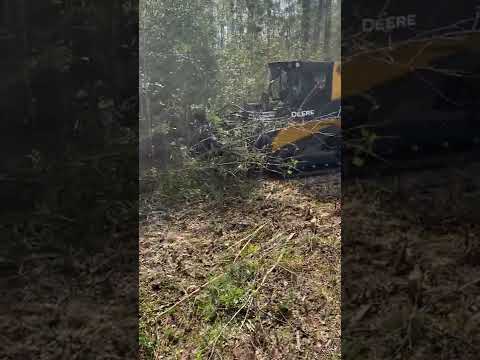

Designed for skid steers and compact track loaders and can be mounted on small track hoes.

DIMENSIONS:


Cutting Width	49 in	125 cm
Width	60.25 in	153 cm
Depth	36 in	92 cm
Height	38.5 in	97 cm
Weight	1,282 lbs	581 kg

SPECIFICATIONS:


No. of Teeth	20	TEETH
Hyd. Flow up to	50 gpm	189 lpm
Op Pressure up to	6,000 psi	413 Bar

CASE DRAIN RETURN PRESSURE:


Max (continuous)	43 psi	3 bar
Intermittent (cold start)	73 psi	5 bar

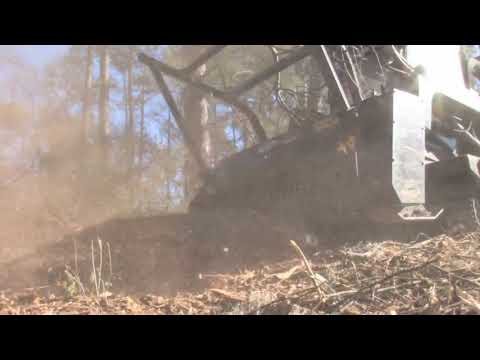

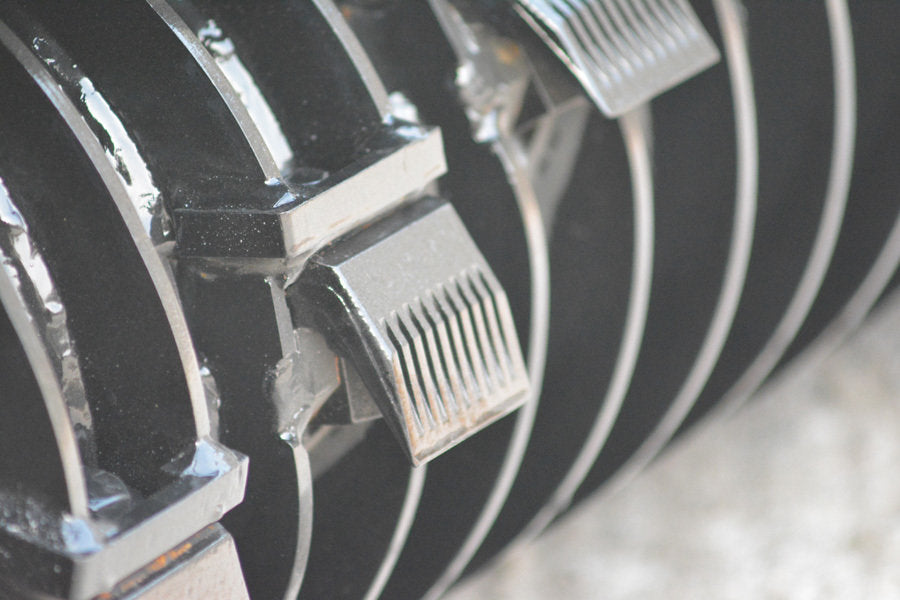

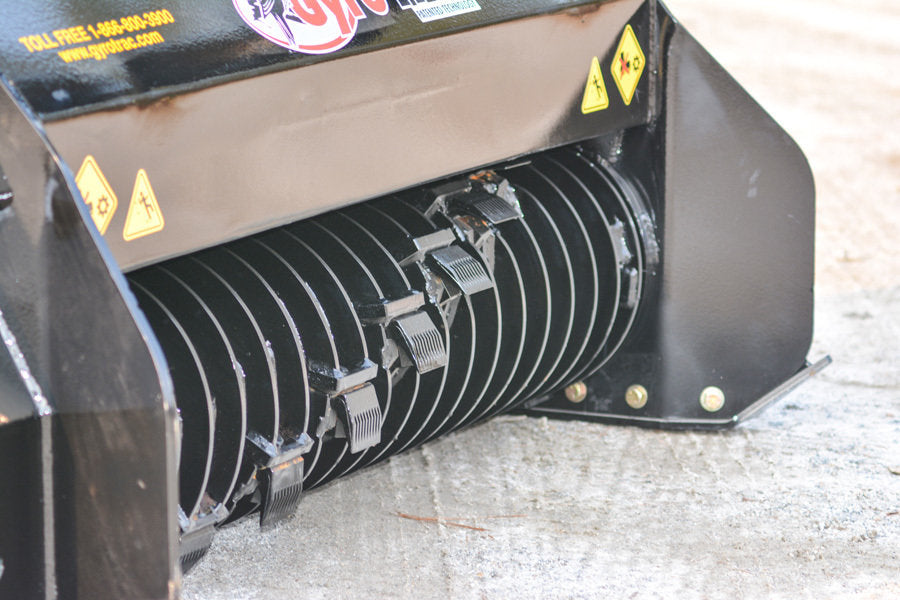

Gyro-Trac’s SABRE-TOOTH TITAN cutting technology PULVERIZES Wood into Sawdust-like Mulch. The new SABRE-TOOTH design is the NEXT GENERATION of "disruptive technology," improving on Gyro-Trac's Planar tooth.

It begins with a WIDER TOOTH, held in place with a WEDGED FRICTION BLOCK, taking all the force off of the single bolt. THAT'S RIGHT! Only one bolt to quickly and easily replace worn teeth.

The CONTROLLED BITE is now achieved with TWO instead of one control rib under the tooth. The distance between control ribs is wider.

The KNOCK-OUT RELIEF that reduces resistance by allowing the wood chip to curl into the relief, now has a SPLIT BLOCK strategically placed to SPLIT THE CHIP and further REDUCE the size of the wood chip. This new design creates a SELF-CLEANING effect, clearing the tooth for the next bite.
