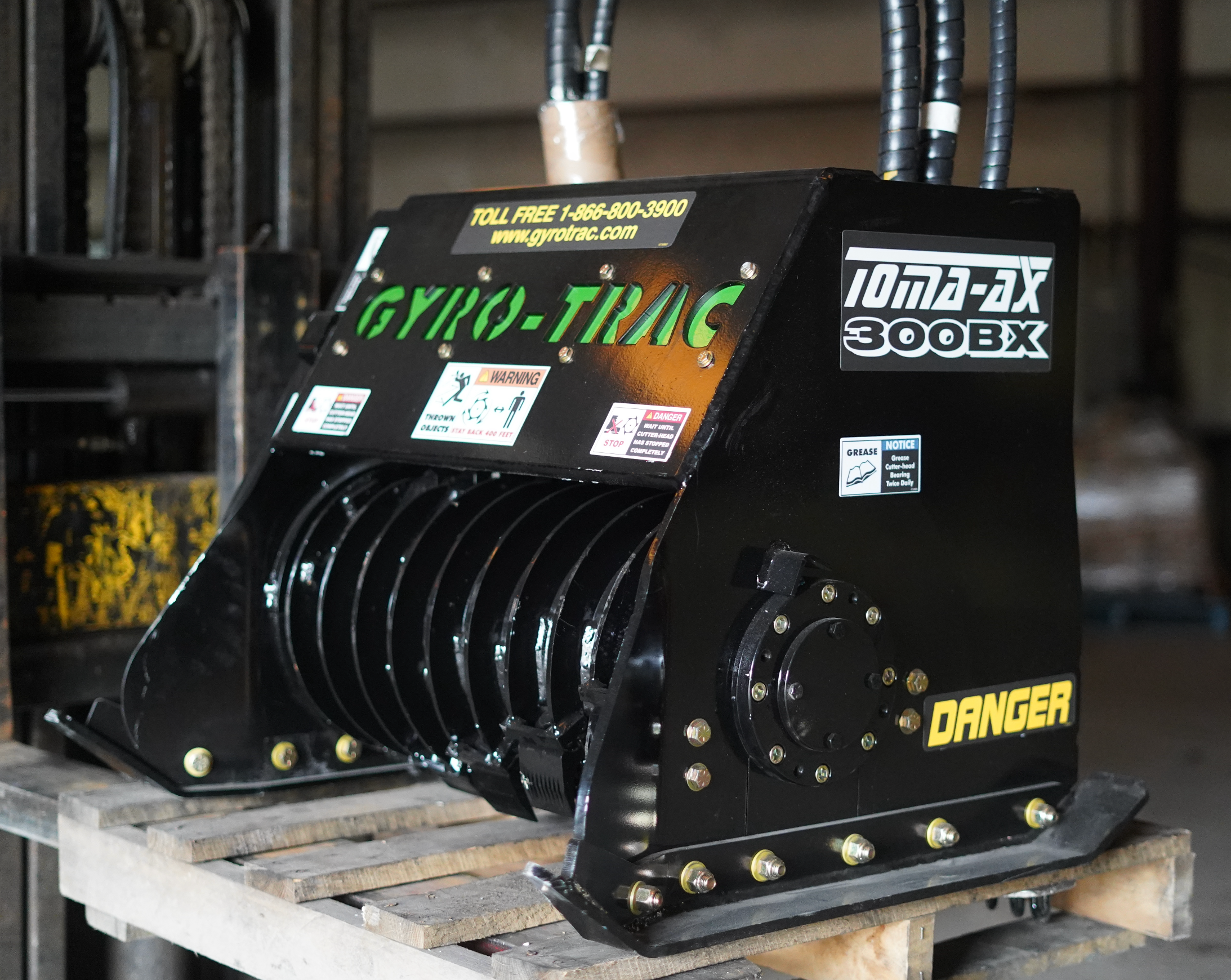

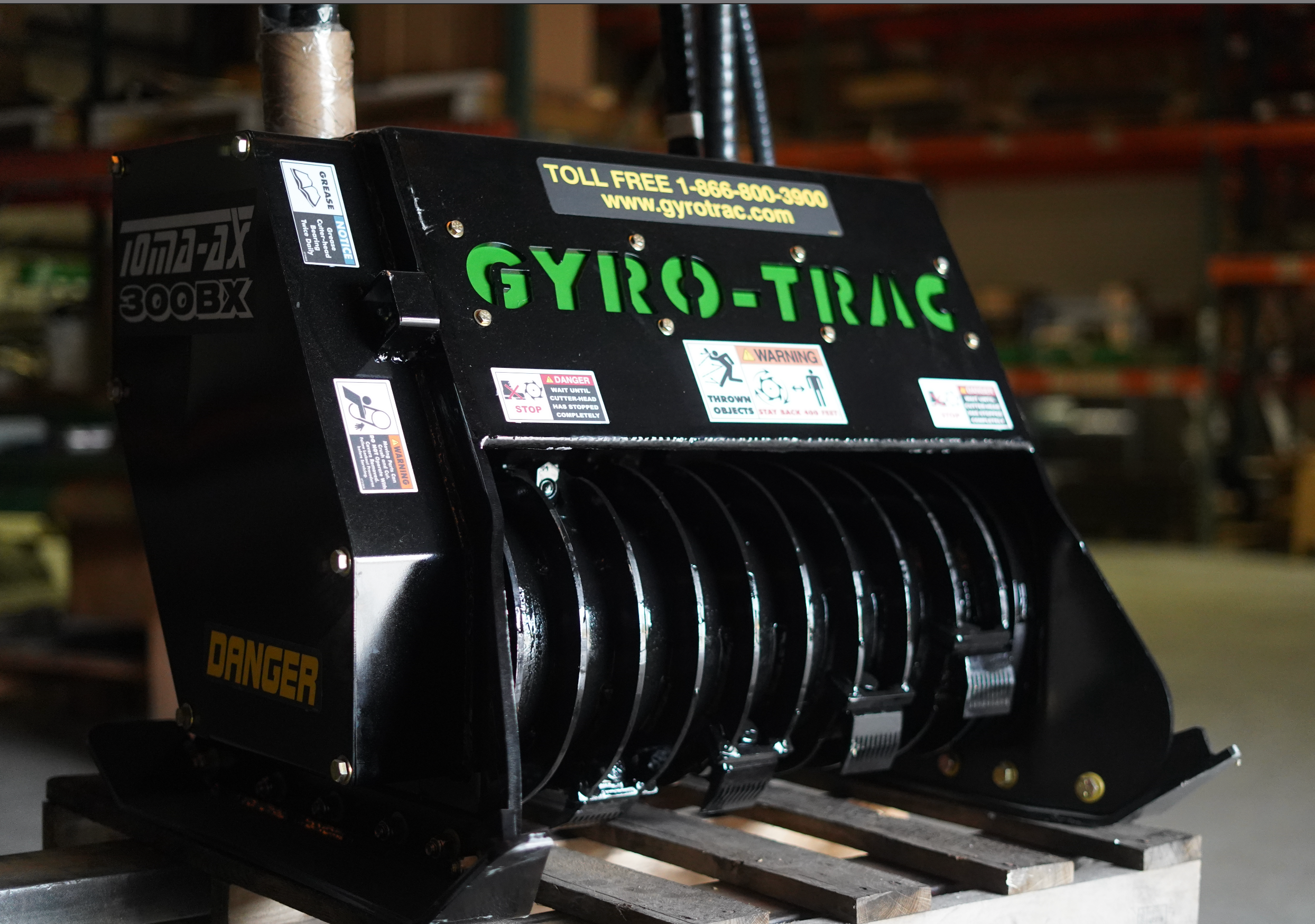

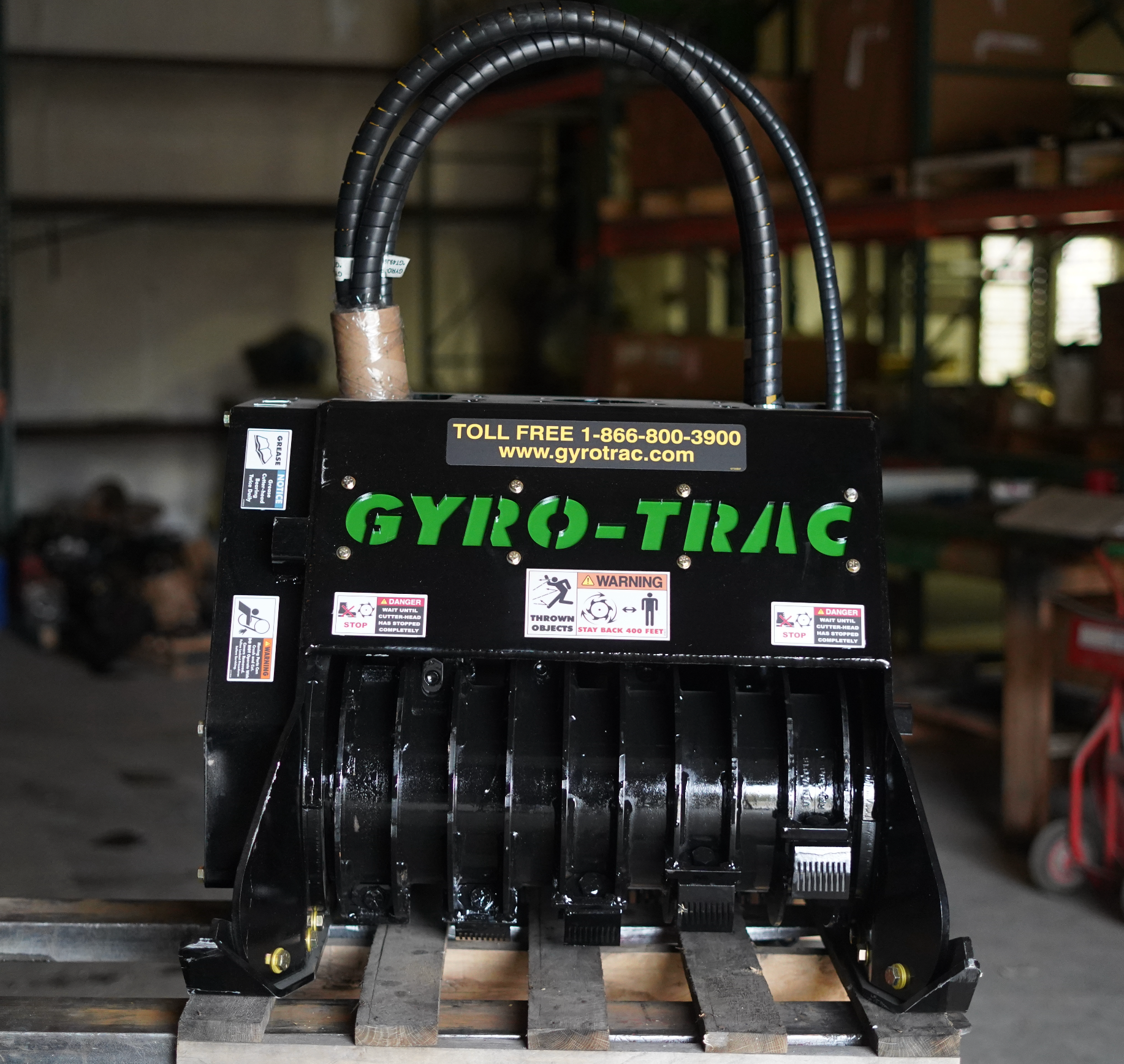

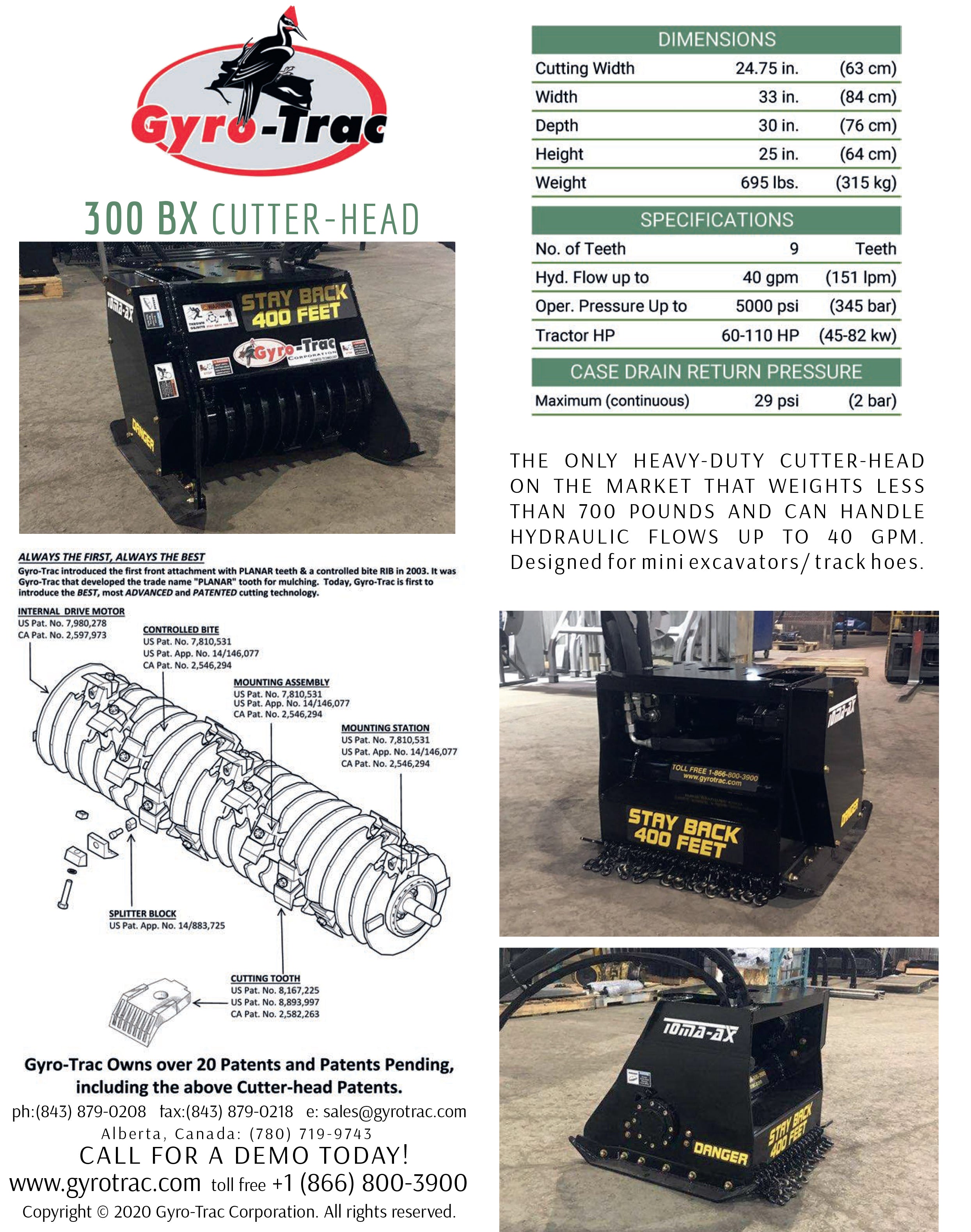

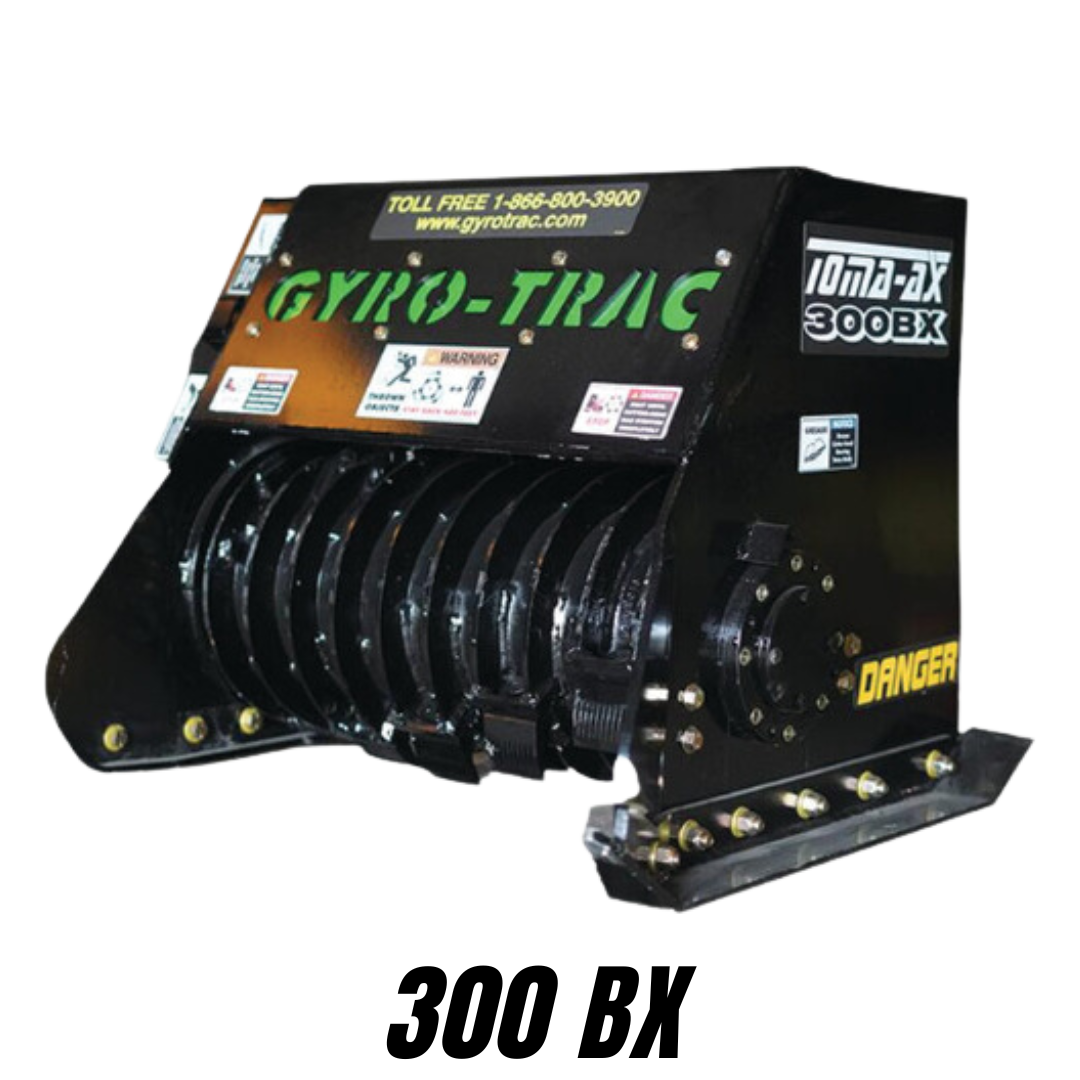

300 BX Cutter-head

THE ONLY HEAVY-DUTY CUTTER-HEAD ON THE MARKET THAT WEIGHTS LESS THAN 700 POUNDS AND CAN HANDLE HYDRAULIC FLOWS UP TO 40 GPM. Designed for mini excavators/ track hoes.

DIMENSIONS:


Cutting Width	24.75 in	63 cm
Width	33 in	84 cm
Depth	30 in	76 cm
Height	25 in	64 cm
Weight	695 lbs	315 kg

SPECIFICATIONS:


No. of Teeth	9	TEETH
Hyd. Flow up to	40 gpm	151 lpm
Op Pressure up to	5,000 psi	345 Bar

CASE DRAIN RETURN PRESSURE:


Max (continuous)	29 psi	2 bar

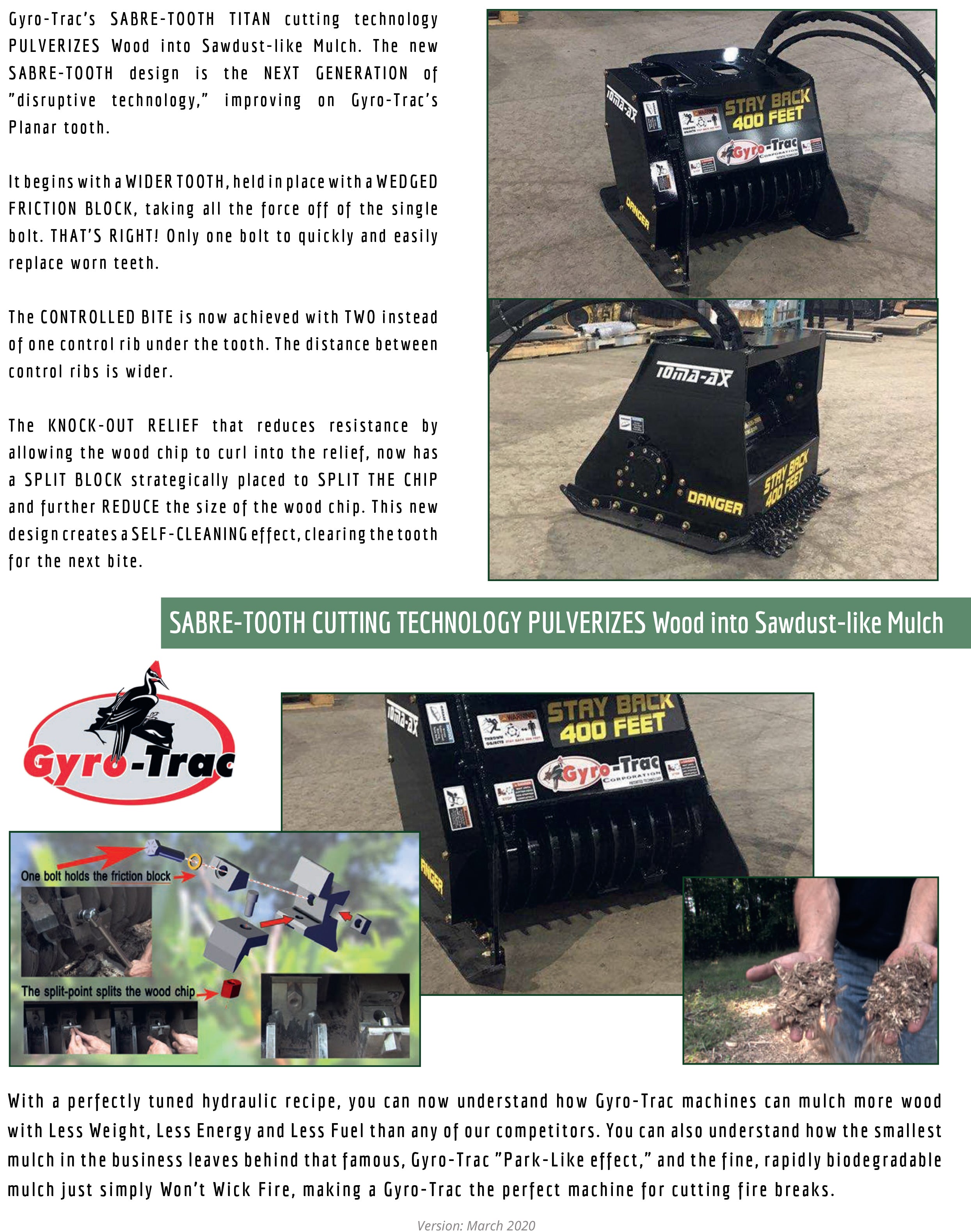

Gyro-Trac’s SABRE-TOOTH TITAN cutting technology PULVERIZES Wood into Sawdust-like Mulch. The new SABRE-TOOTH design is the NEXT GENERATION of "disruptive technology," improving on Gyro-Trac's Planar tooth.

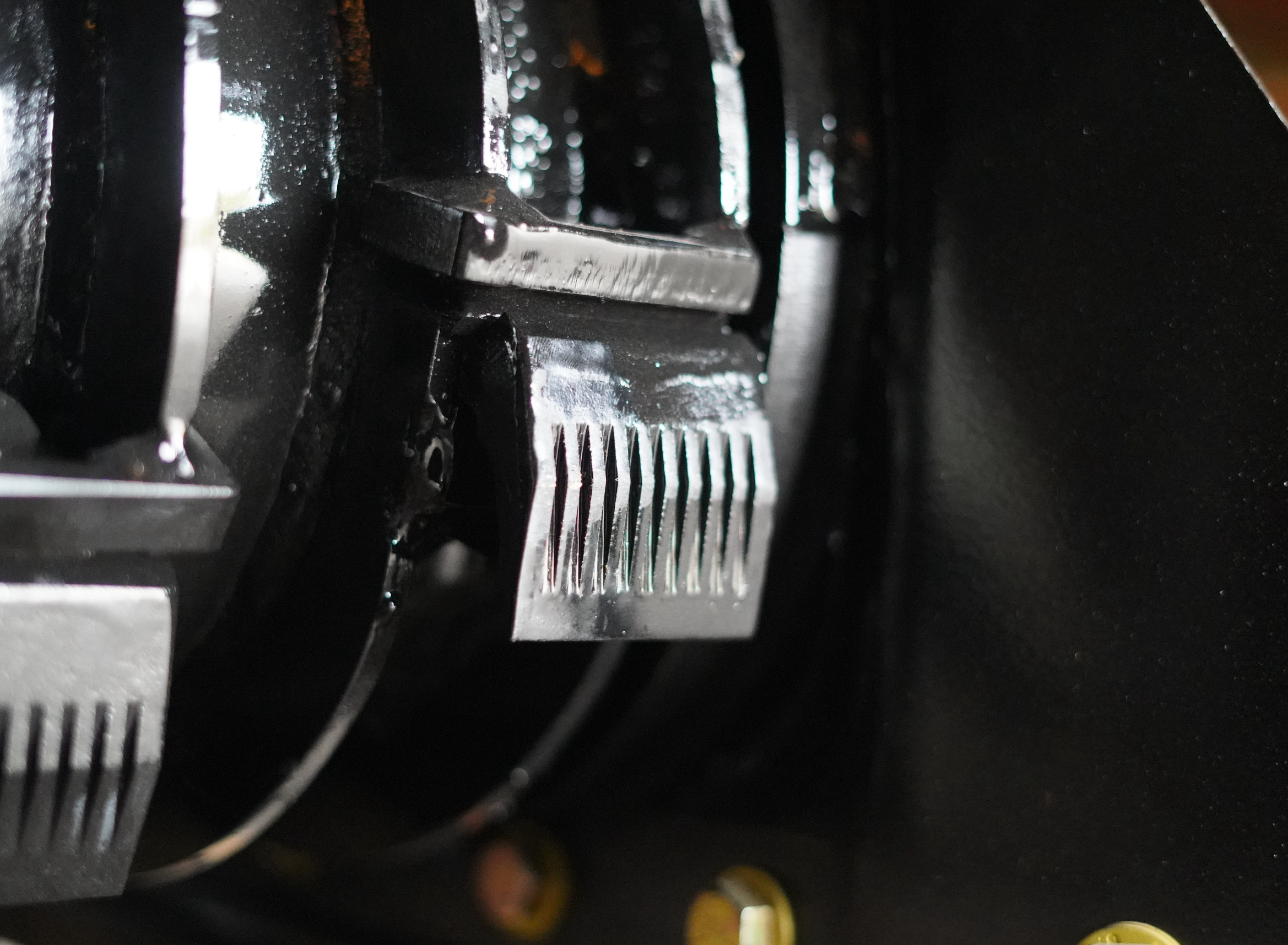

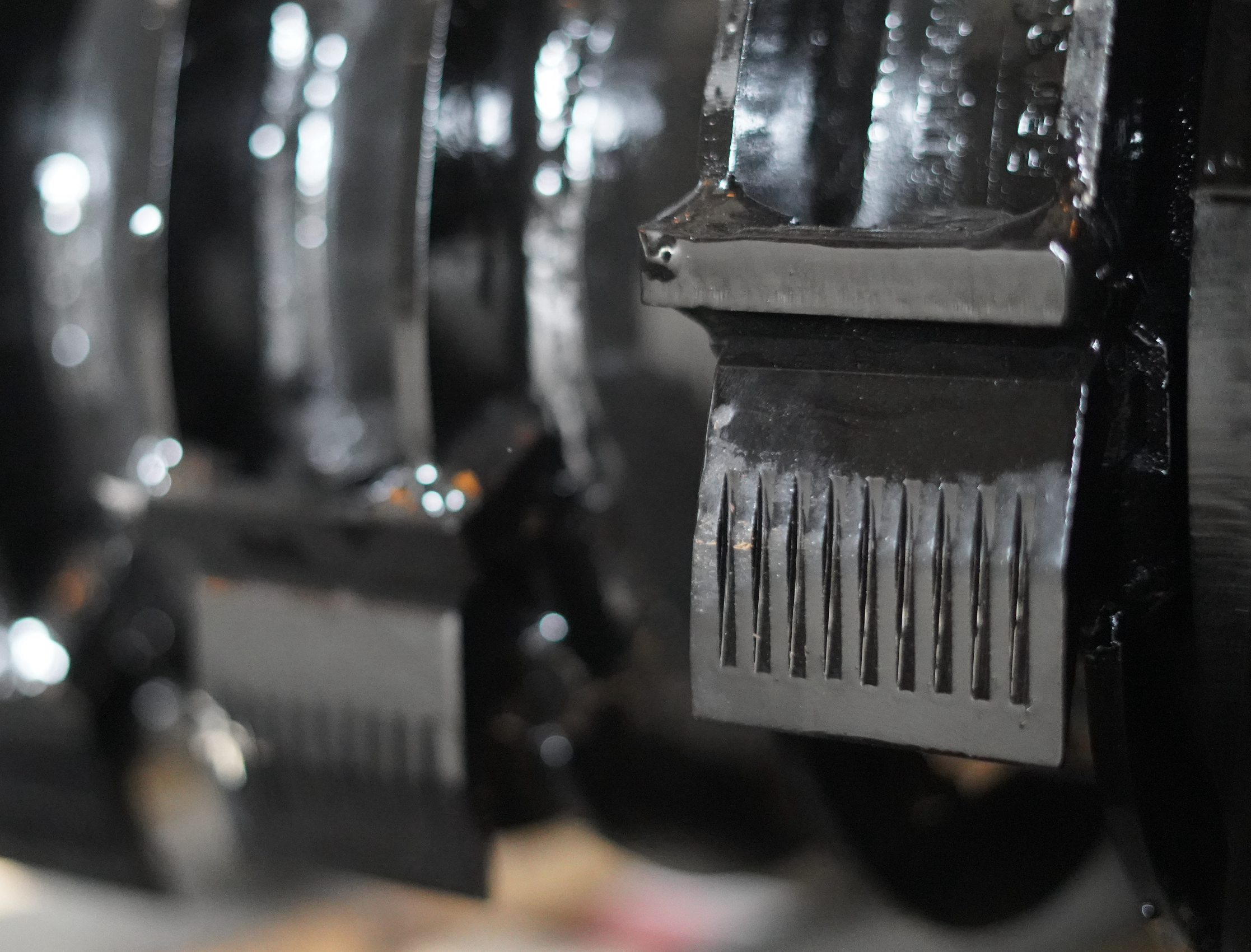

It begins with a WIDER TOOTH, held in place with a WEDGED FRICTION BLOCK, taking all the force off of the single bolt. THAT'S RIGHT! Only one bolt to quickly and easily replace worn teeth.

The CONTROLLED BITE is now achieved with TWO instead of one control rib under the tooth. The distance between control ribs is wider.

The KNOCK-OUT RELIEF that reduces resistance by allowing the wood chip to curl into the relief, now has a SPLIT BLOCK strategically placed to SPLIT THE CHIP and further REDUCE the size of the wood chip. This new design creates a SELF-CLEANING effect, clearing the tooth for the next bite.
