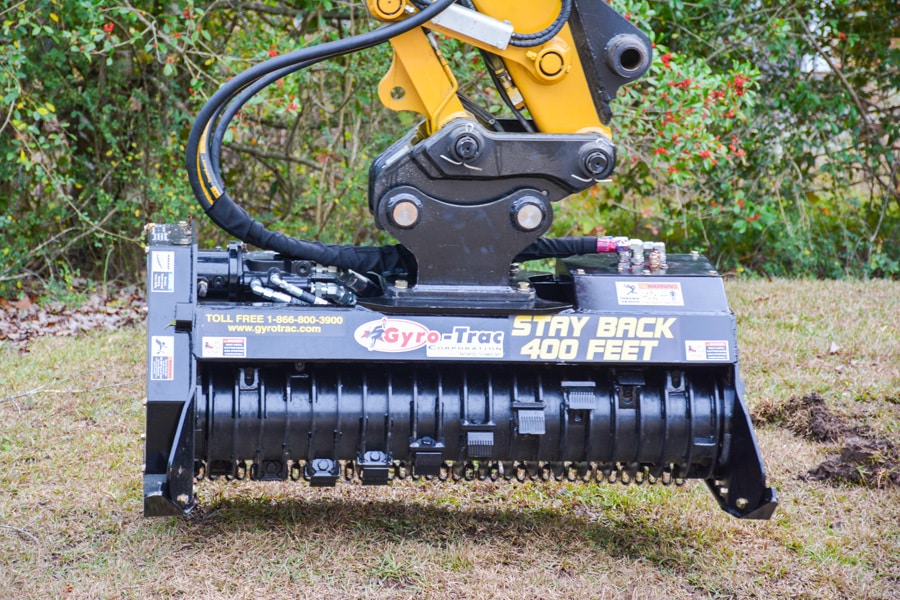

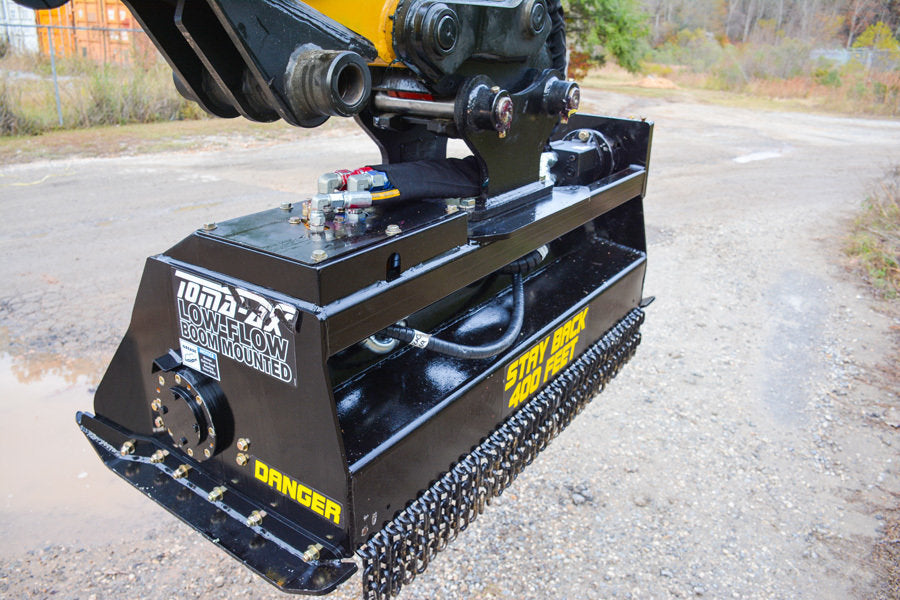

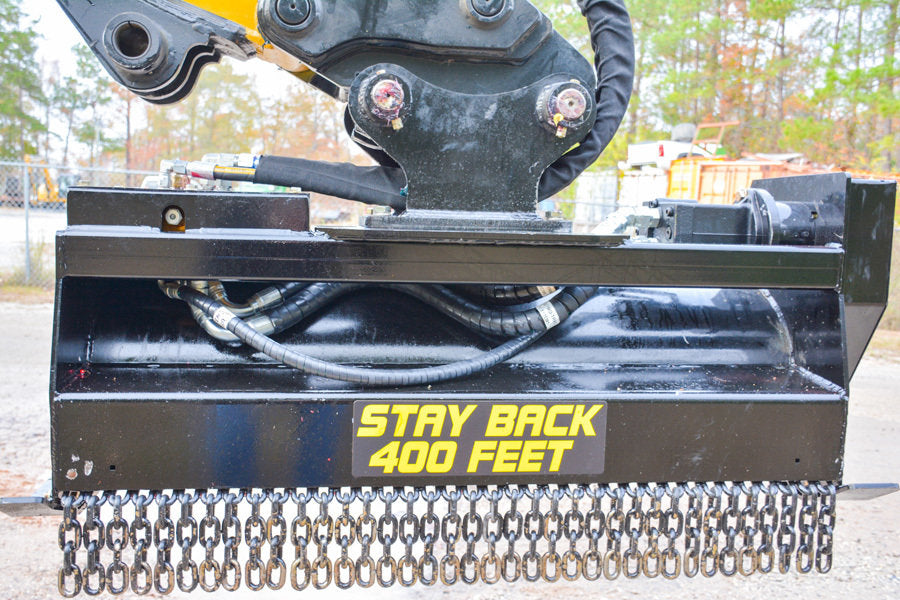

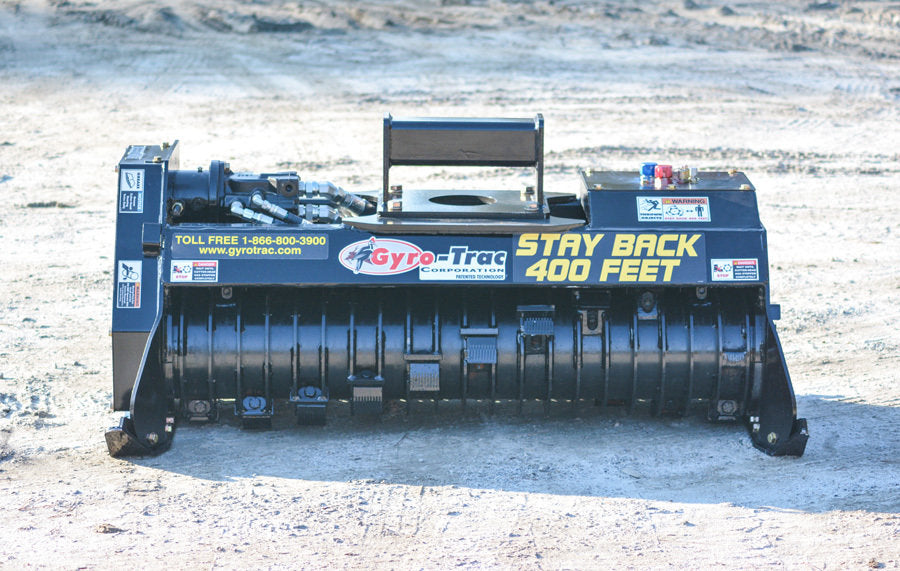

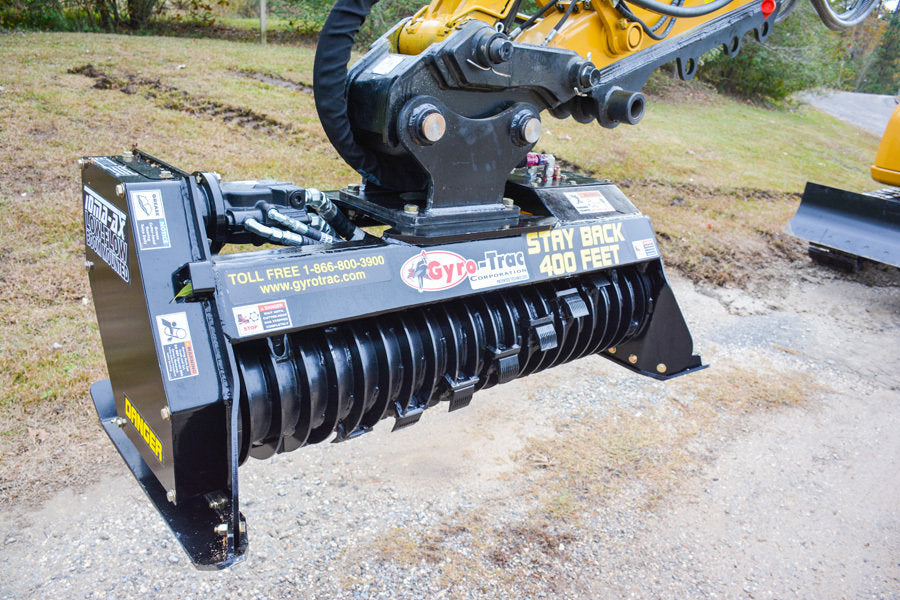

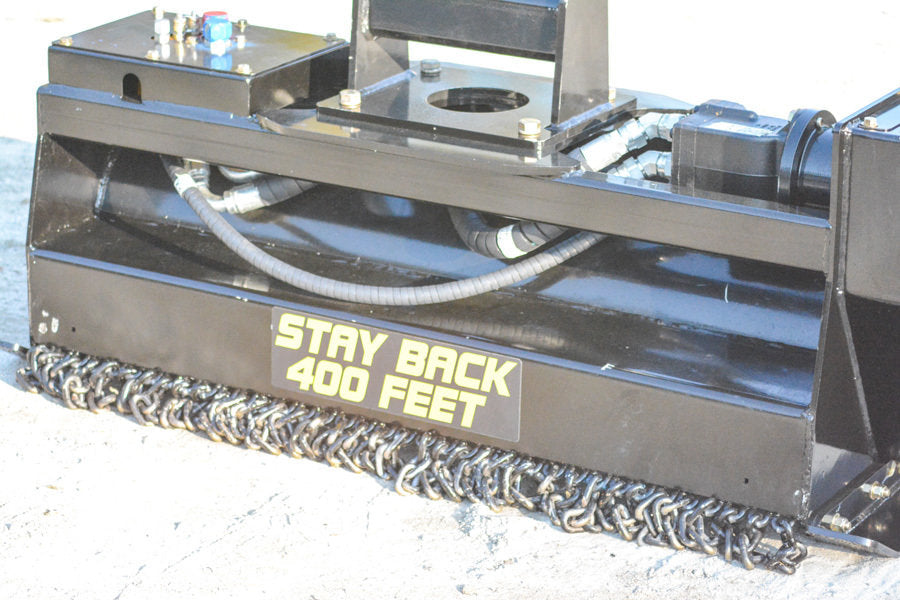

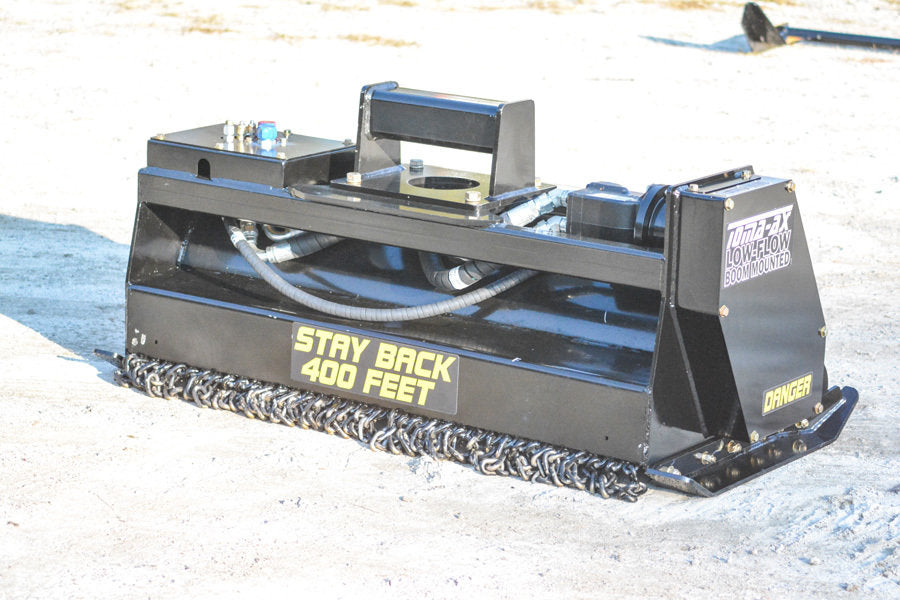

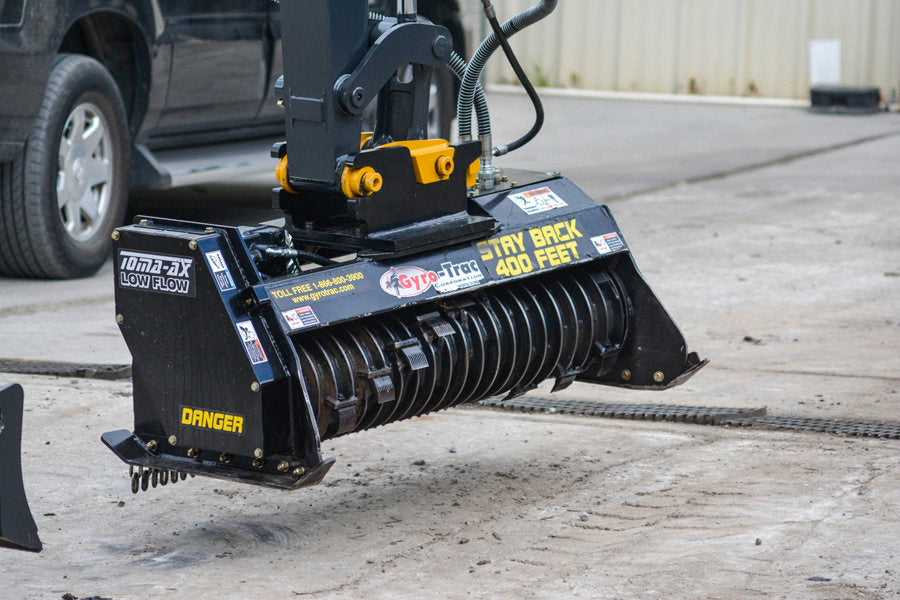

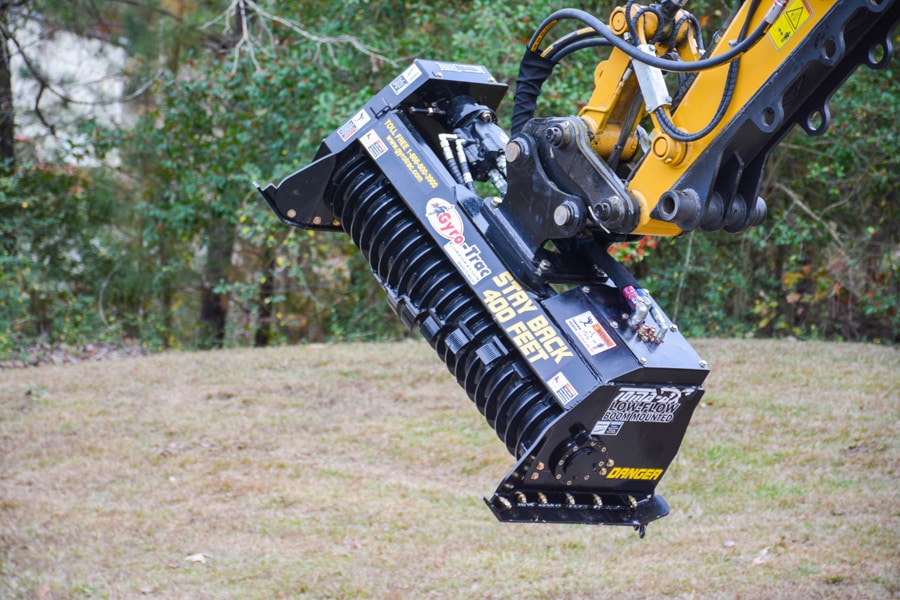

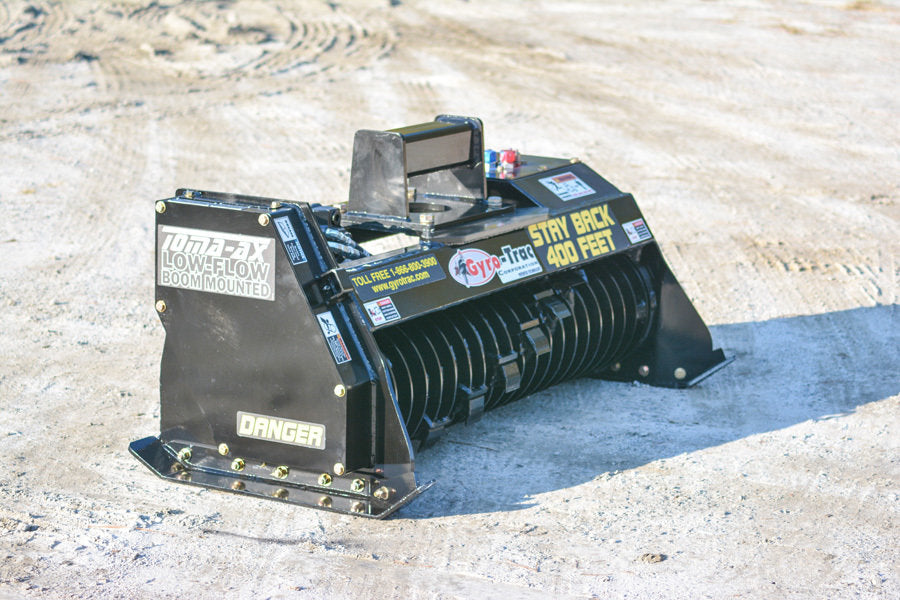

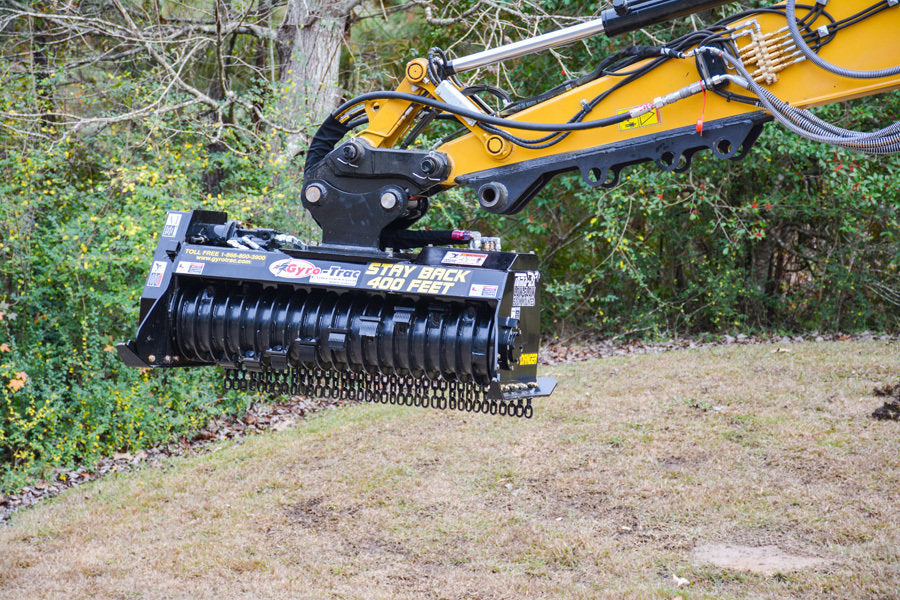

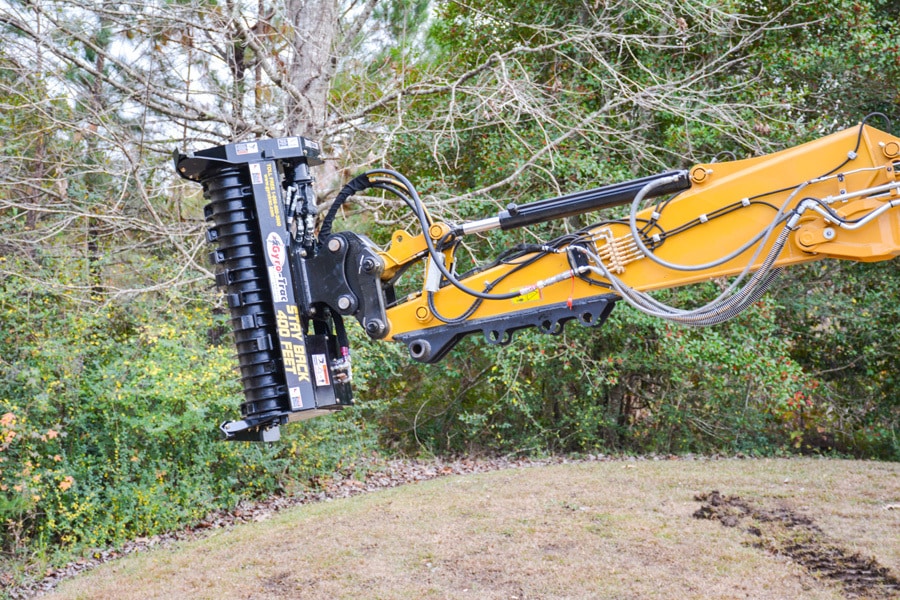

400 HL BMT Cutter-head

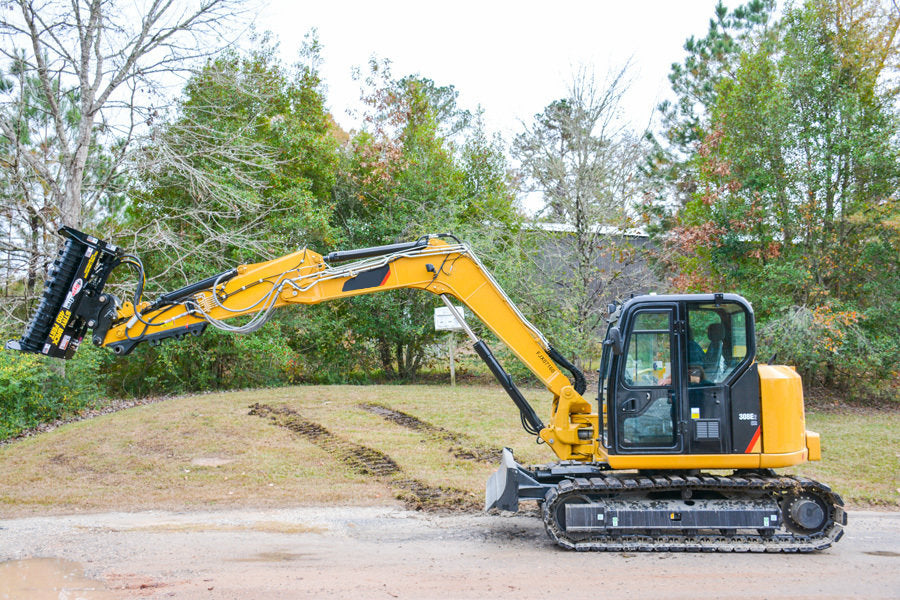

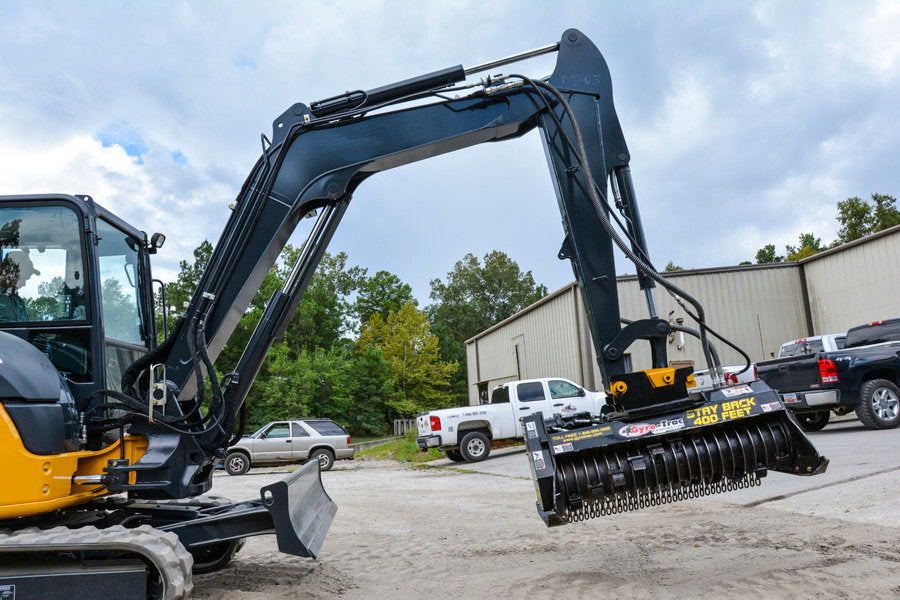

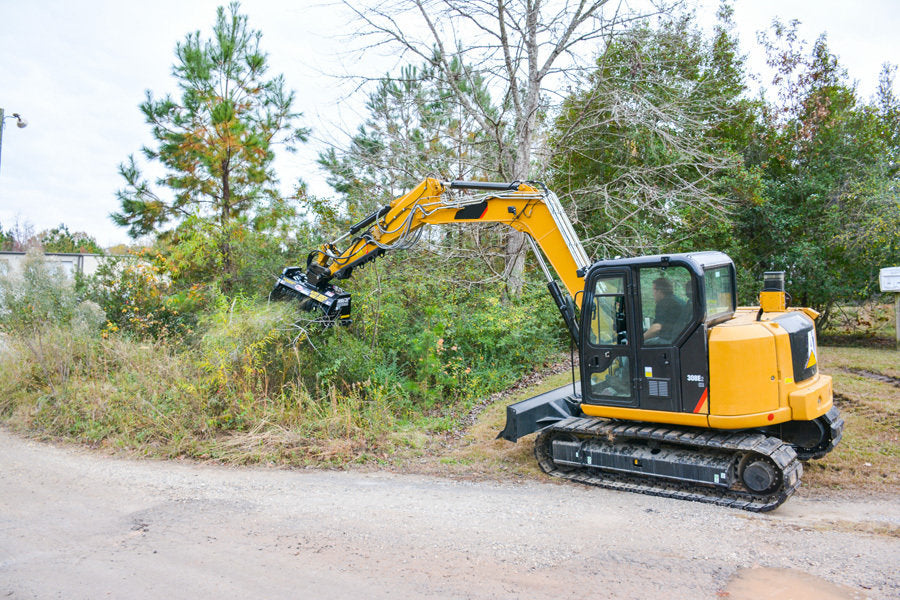

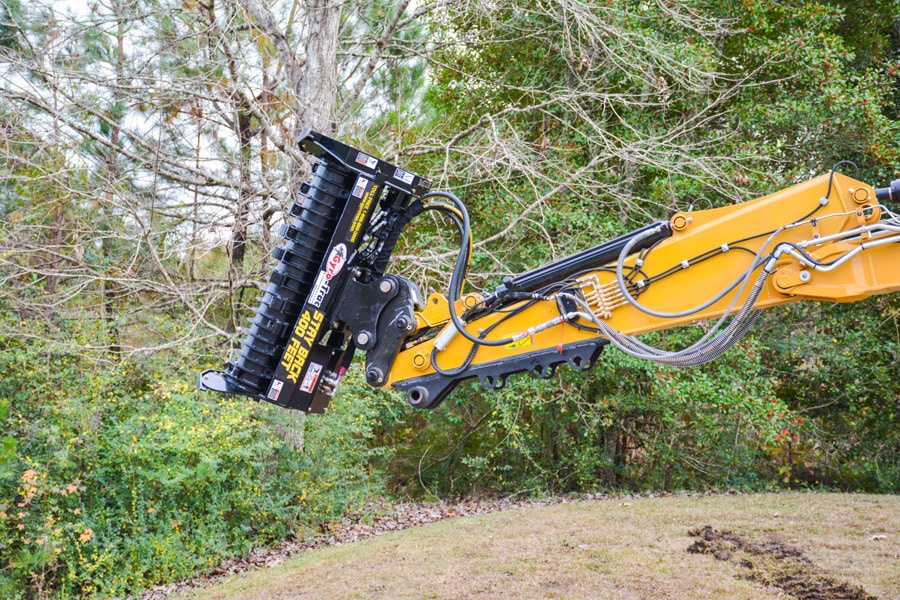

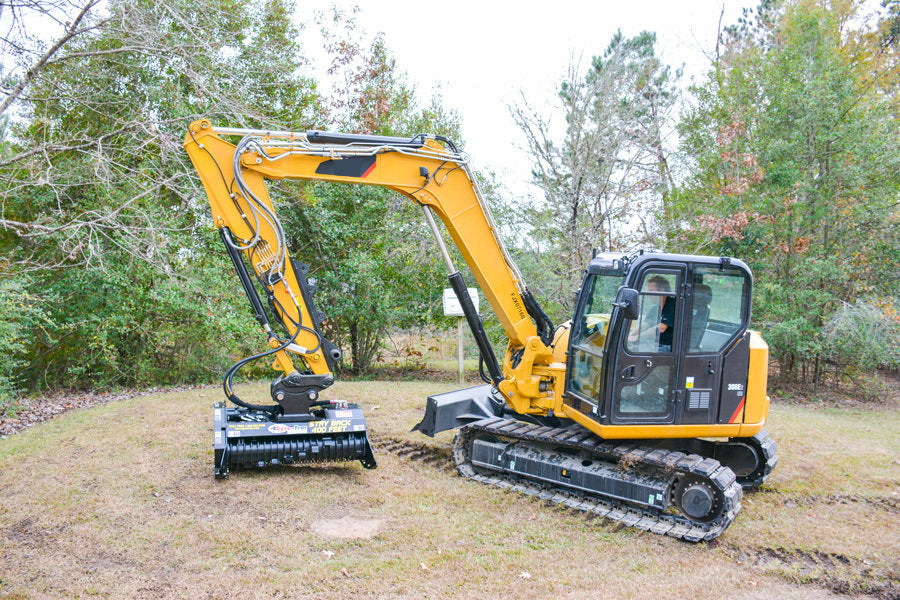

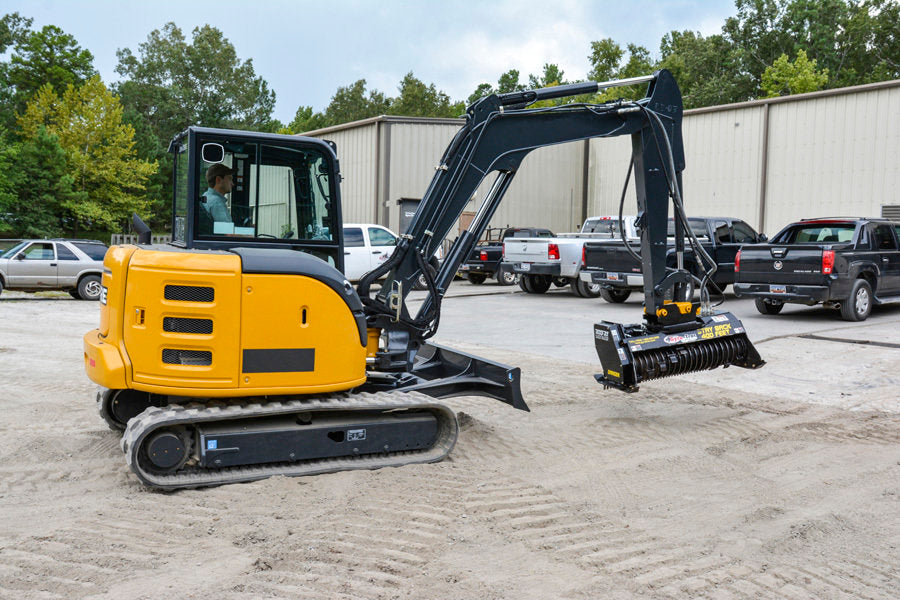

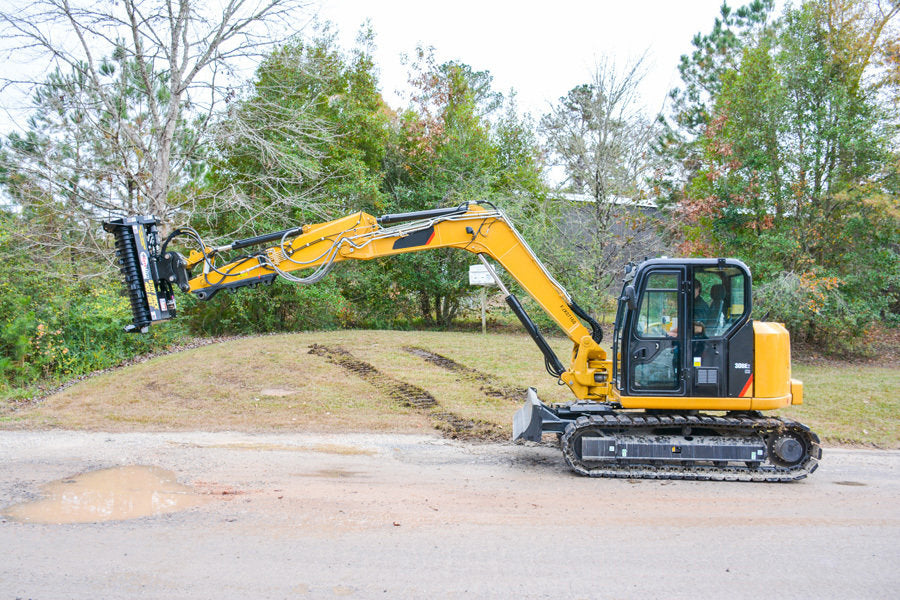

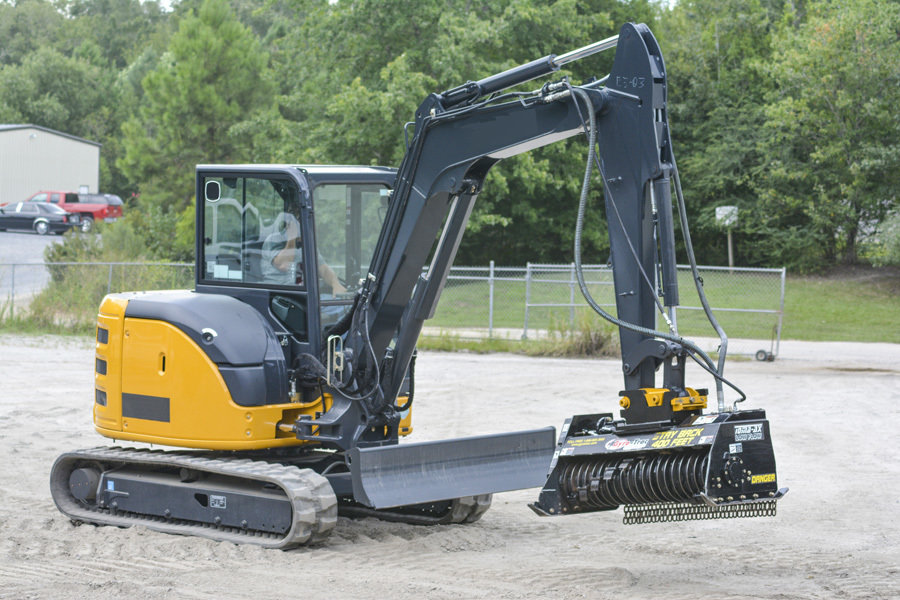

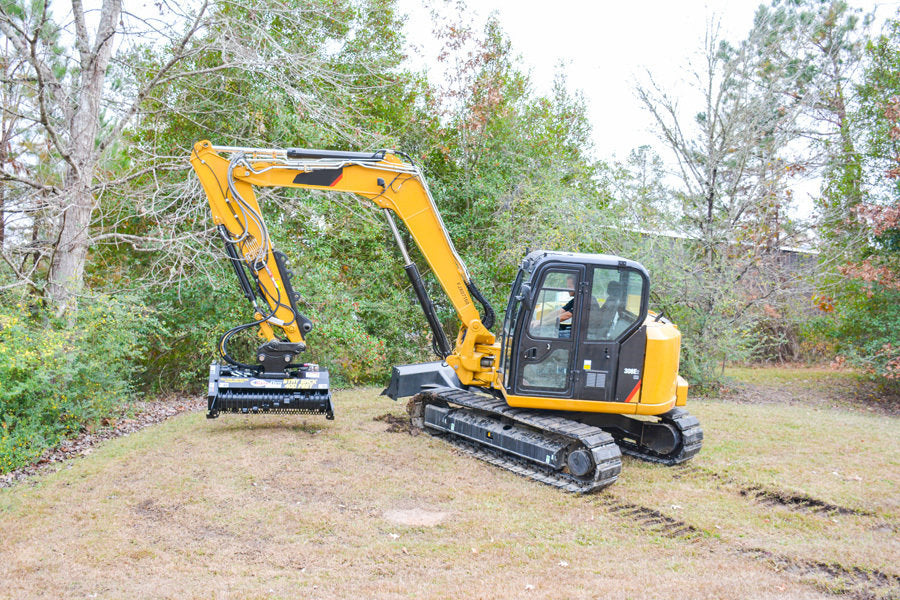

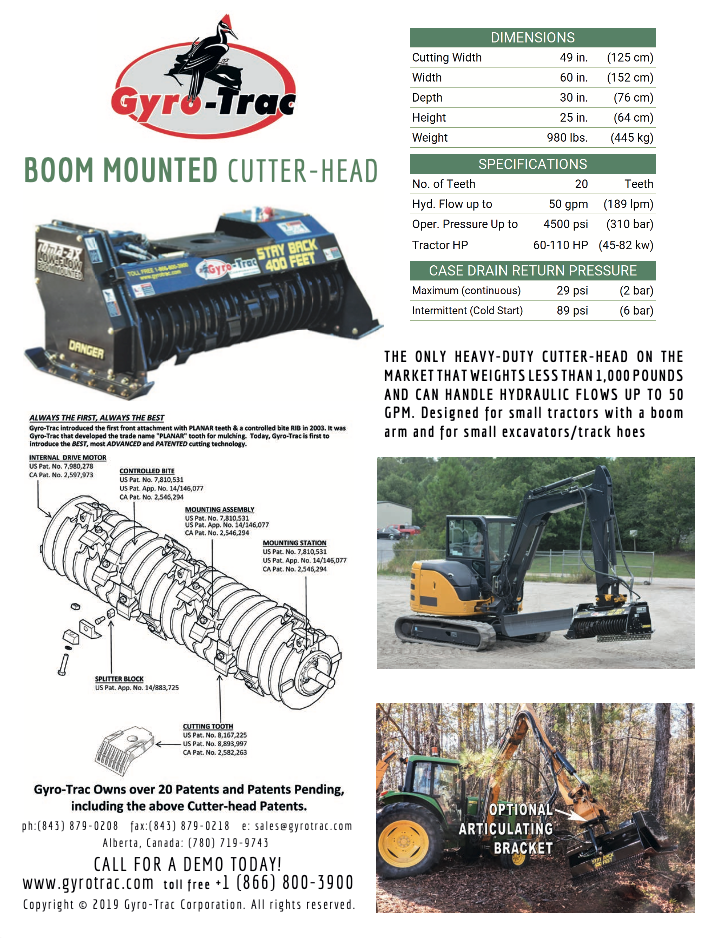

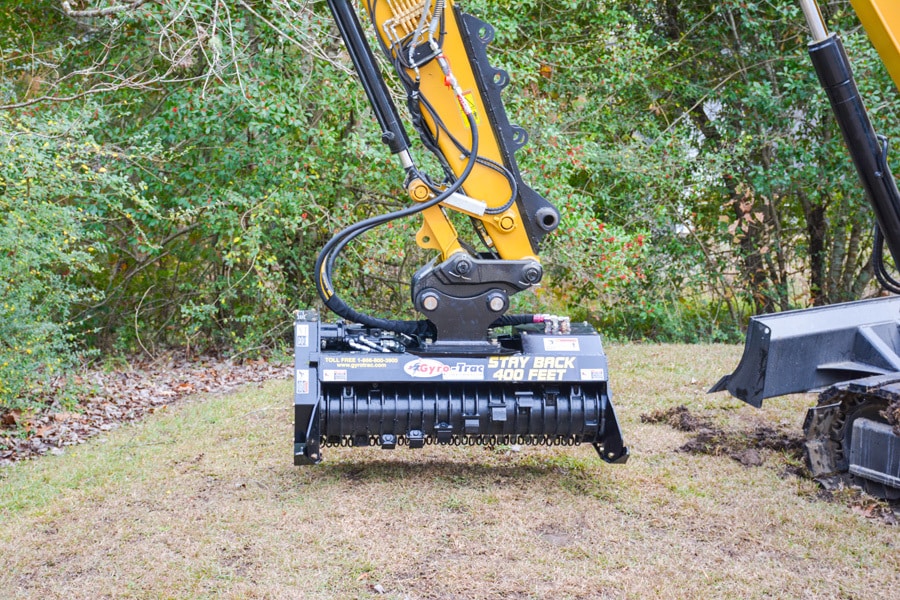

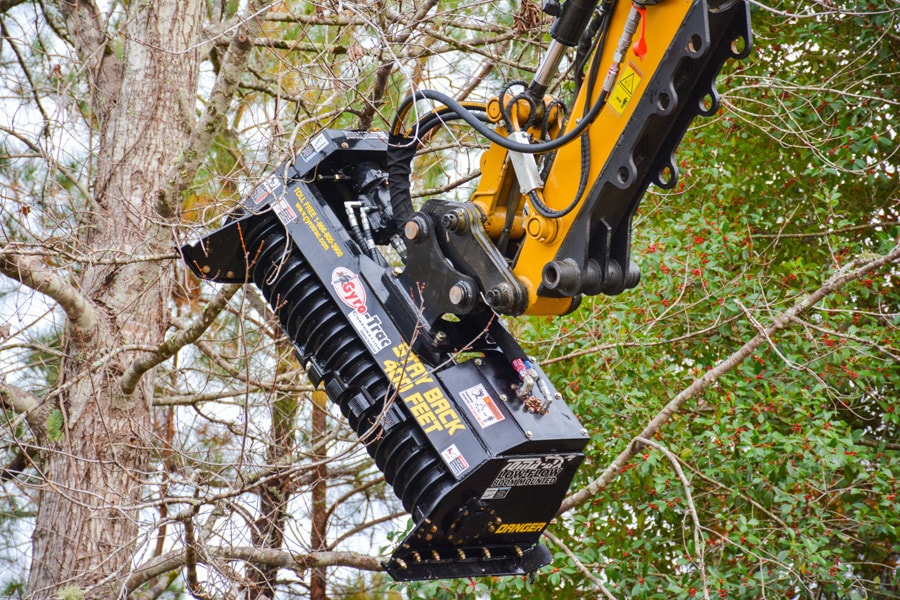

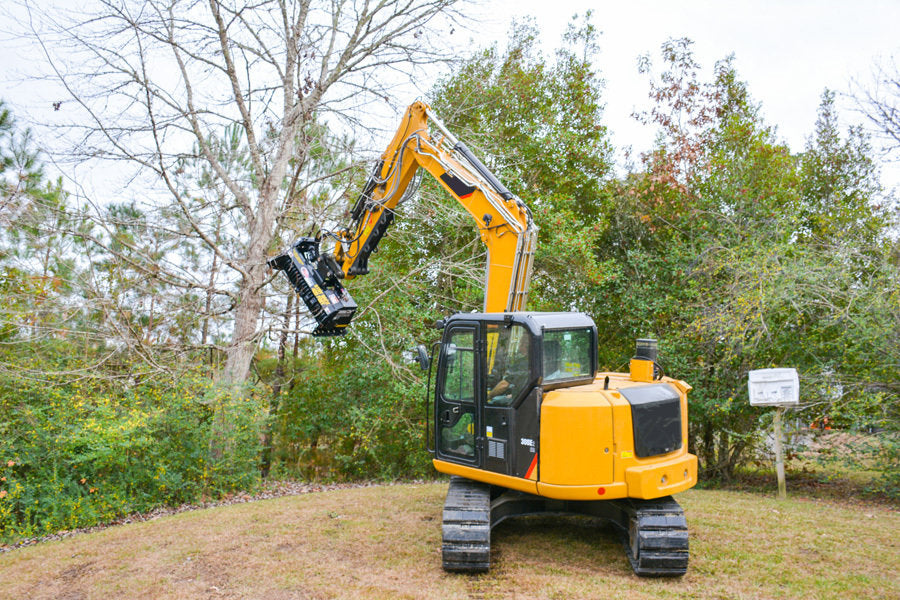

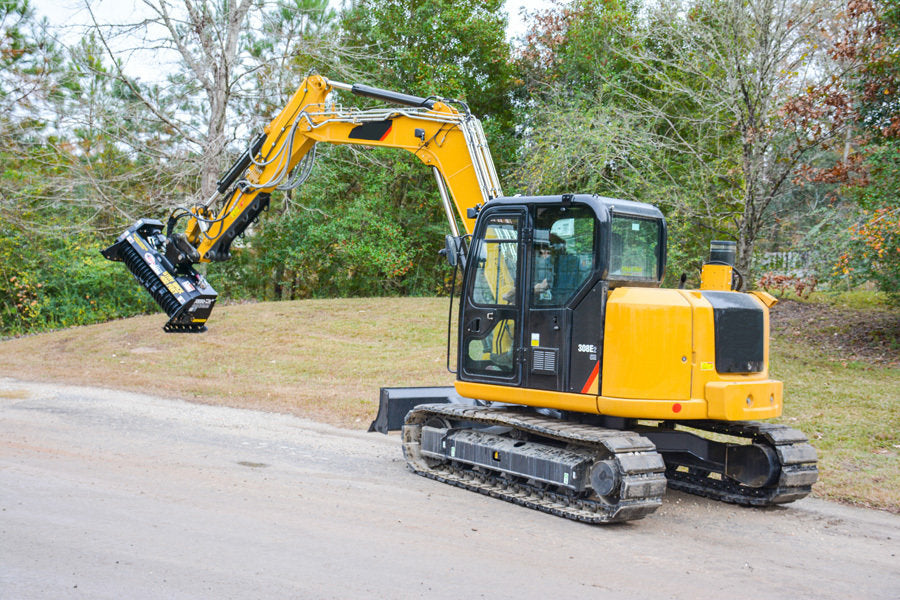

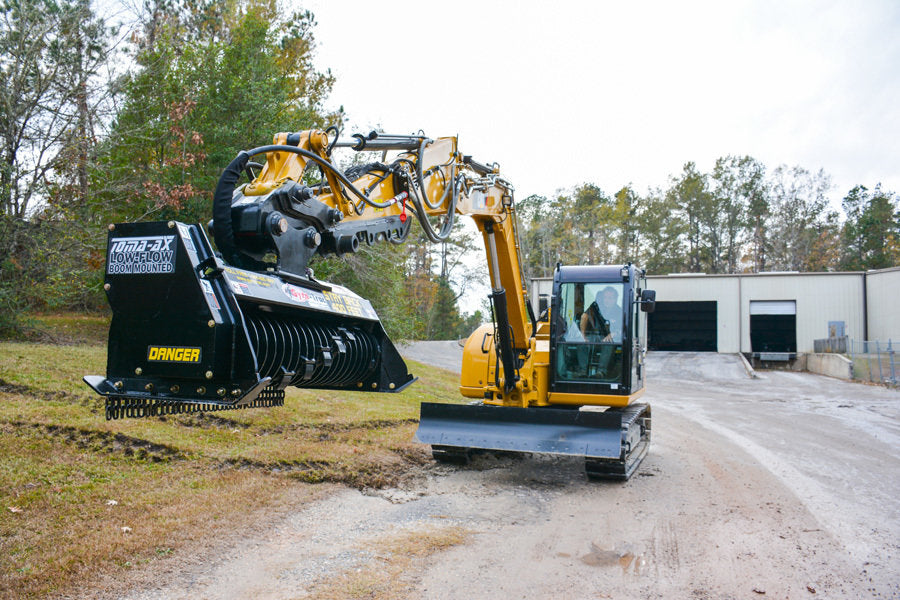

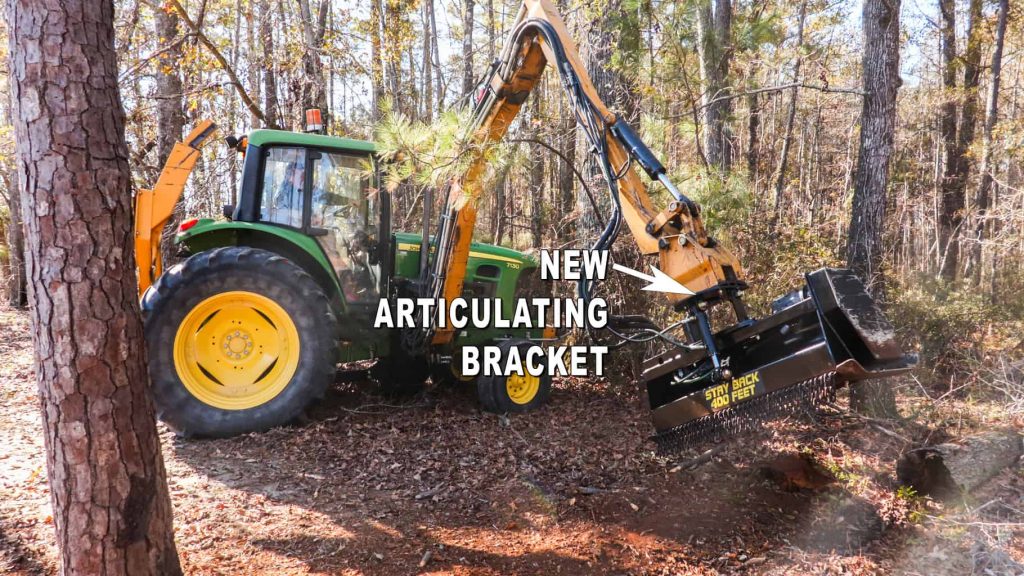

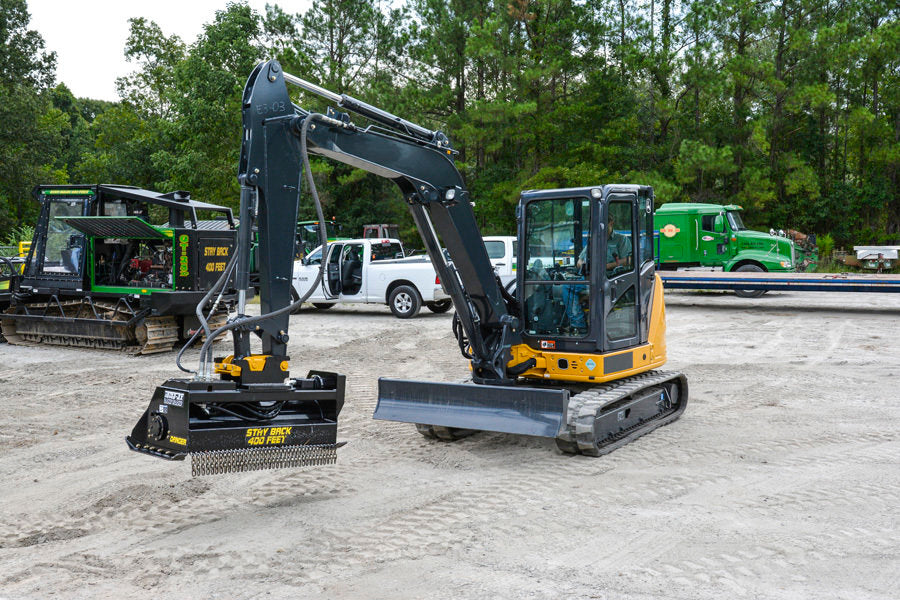

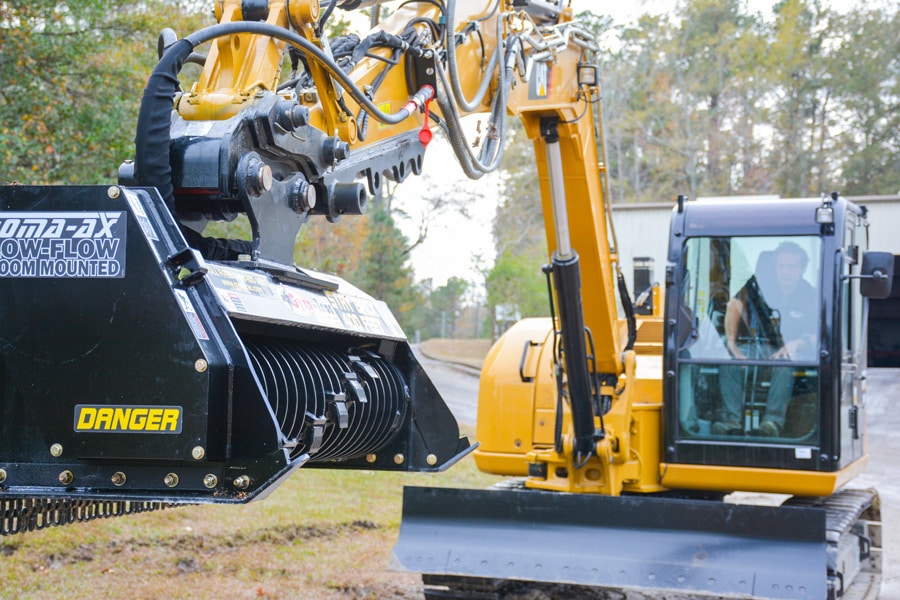

Regular price $0.00THE ONLY HEAVY-DUTY CUTTER HEAD ON THE MARKET THAT WEIGHS LESS THAN 1,000 POUNDS AND CAN HANDLE HYDRAULIC FLOWS UP TO 50 GPM; Designed for small tractors with a boom arm and for mini-excavators / track hoes.
DIMENSIONS:
|
Cutting Width |
49 in |
125 cm |
|
Width |
60 in |
152 cm |
|
Depth |
30 in |
76 cm |
|
Height |
25 in |
64 cm |
|
Weight |
990 lbs |
450 kg |
SPECIFICATIONS:
|
No. of Teeth |
20 |
TEETH |
|
Hyd. Flow up to |
50 gpm |
189 lpm |
|
Op Pressure up to |
6,000 psi |
413 Bar |
|
Tractor HP |
60-110 HP |
45-82 kw |

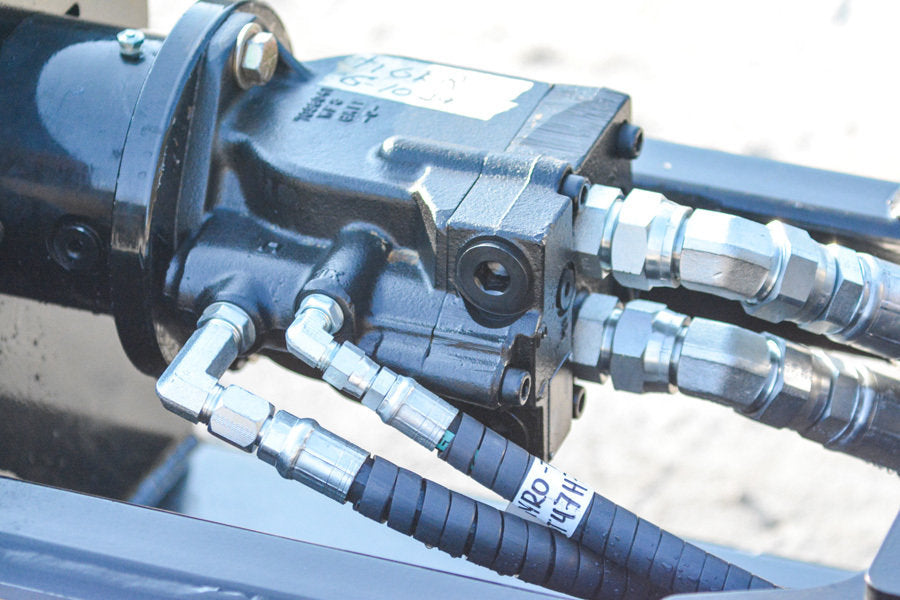

CASE DRAIN RETURN PRESSURE:
|
Max (continuous) |
29 psi |
2 bar |
|
Intermittent (cold start) |
89 psi |
6 bar |

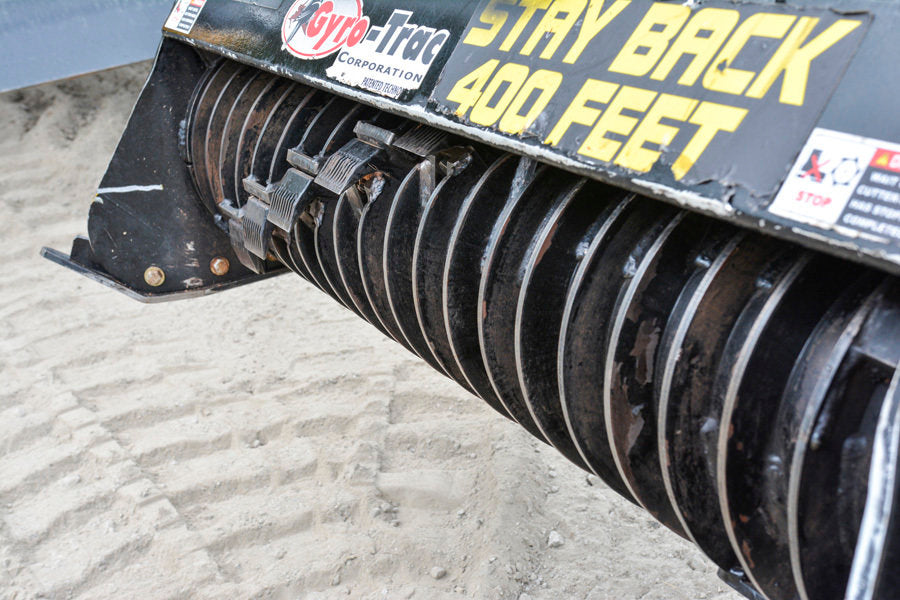

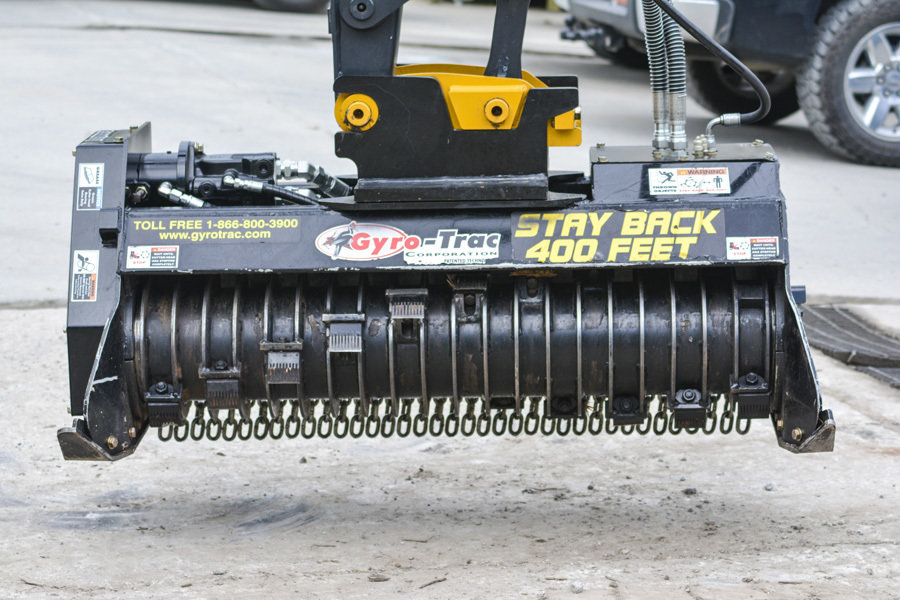

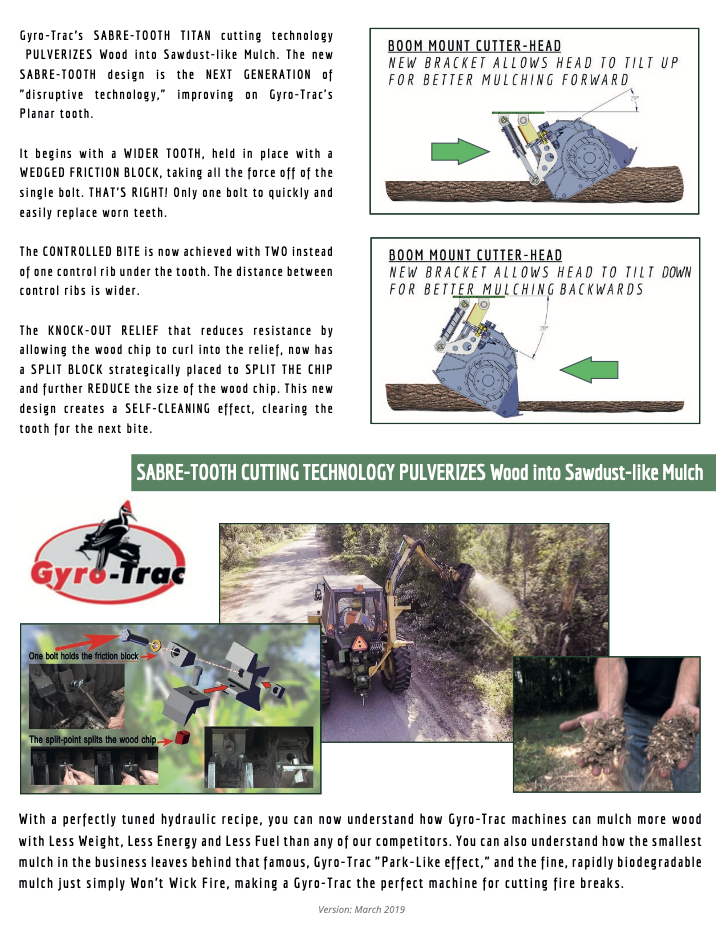

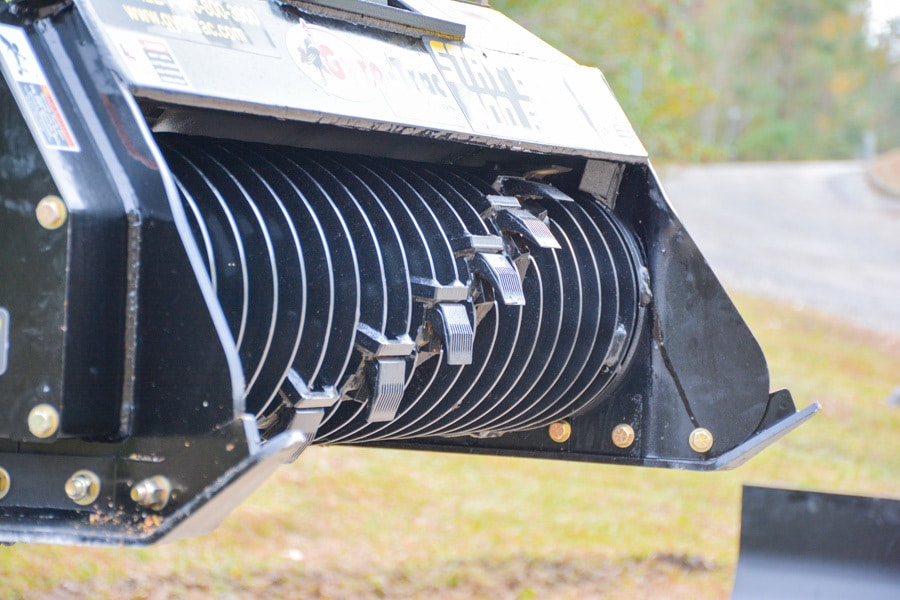

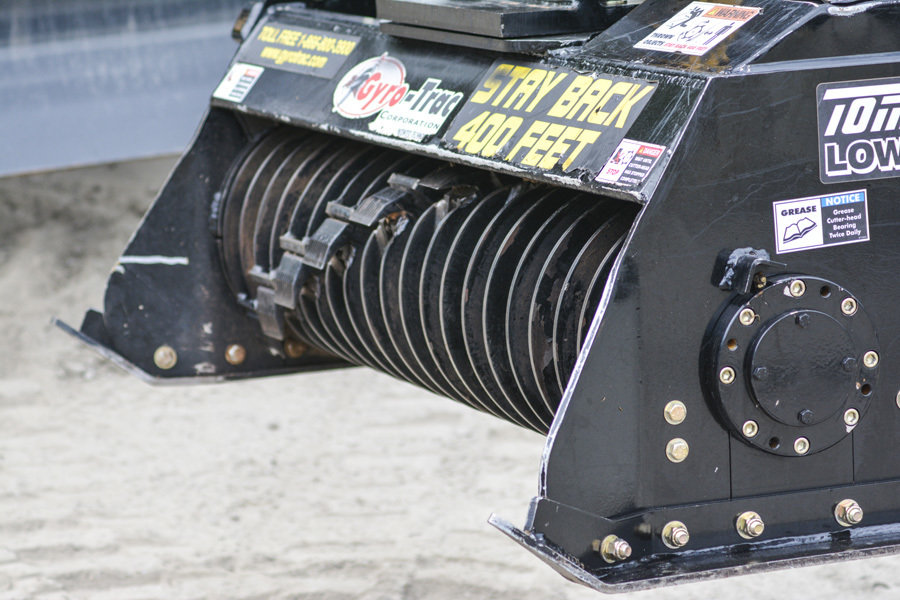

Gyro-Trac’s SABRE-TOOTH TITAN cutting technology PULVERIZES Wood into Sawdust-like Mulch. The new SABRE-TOOTH design is the NEXT GENERATION of "disruptive technology," improving on Gyro-Trac's Planar tooth.
It begins with a WIDER TOOTH, held in place with a WEDGED FRICTION BLOCK, taking all the force off of the single bolt. THAT'S RIGHT! Only one bolt to quickly and easily replace worn teeth.
The CONTROLLED BITE is now achieved with TWO instead of one control rib under the tooth. The distance between control ribs is wider.
The KNOCK-OUT RELIEF that reduces resistance by allowing the wood chip to curl into the relief, now has a SPLIT BLOCK strategically placed to SPLIT THE CHIP and further REDUCE the size of the wood chip. This new design creates a SELF-CLEANING effect, clearing the tooth for the next bite.
