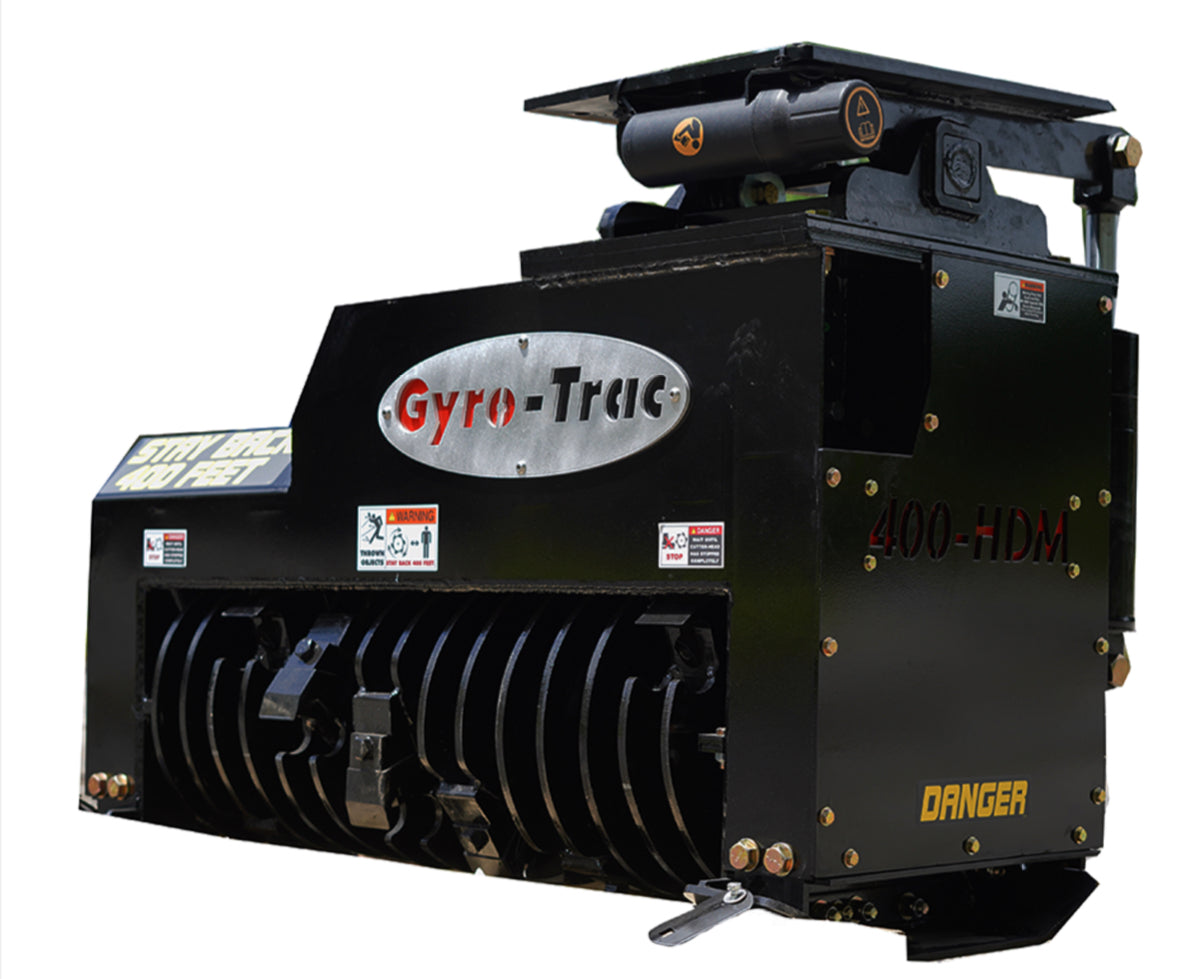

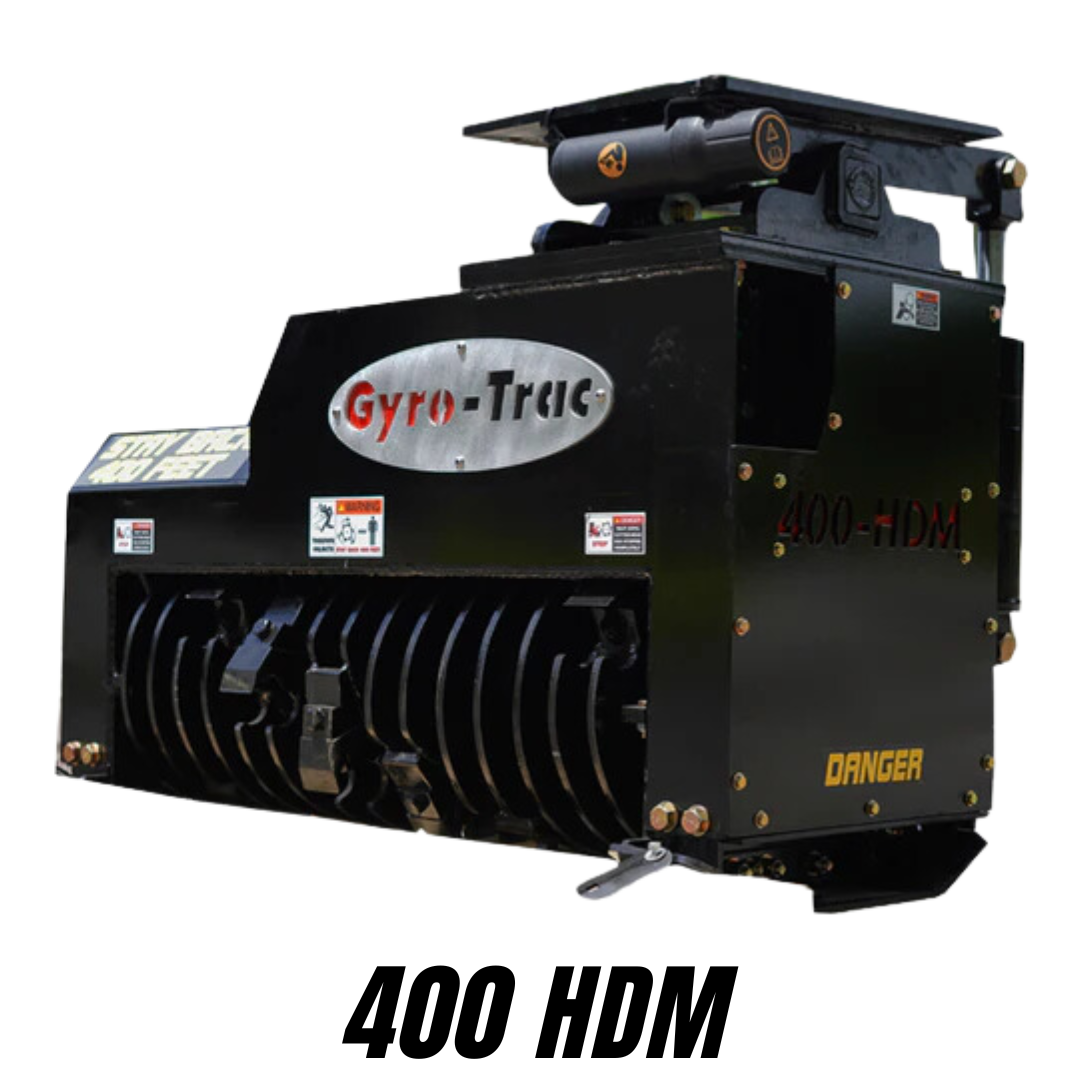

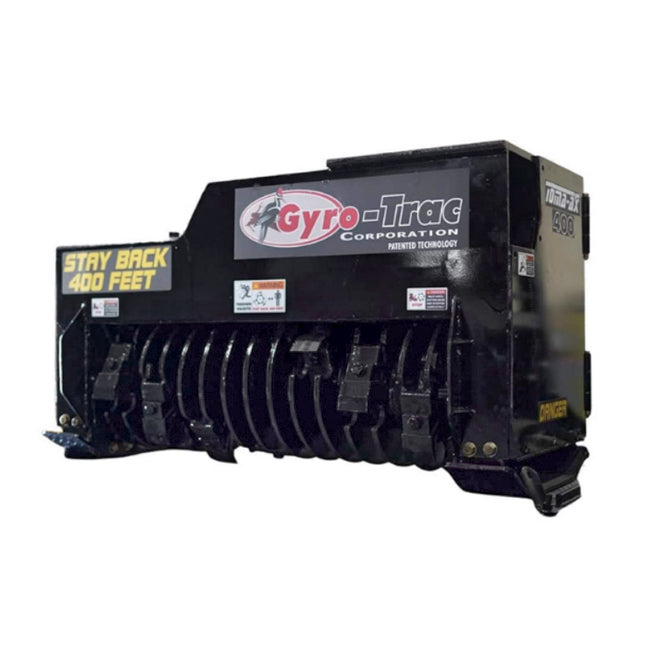

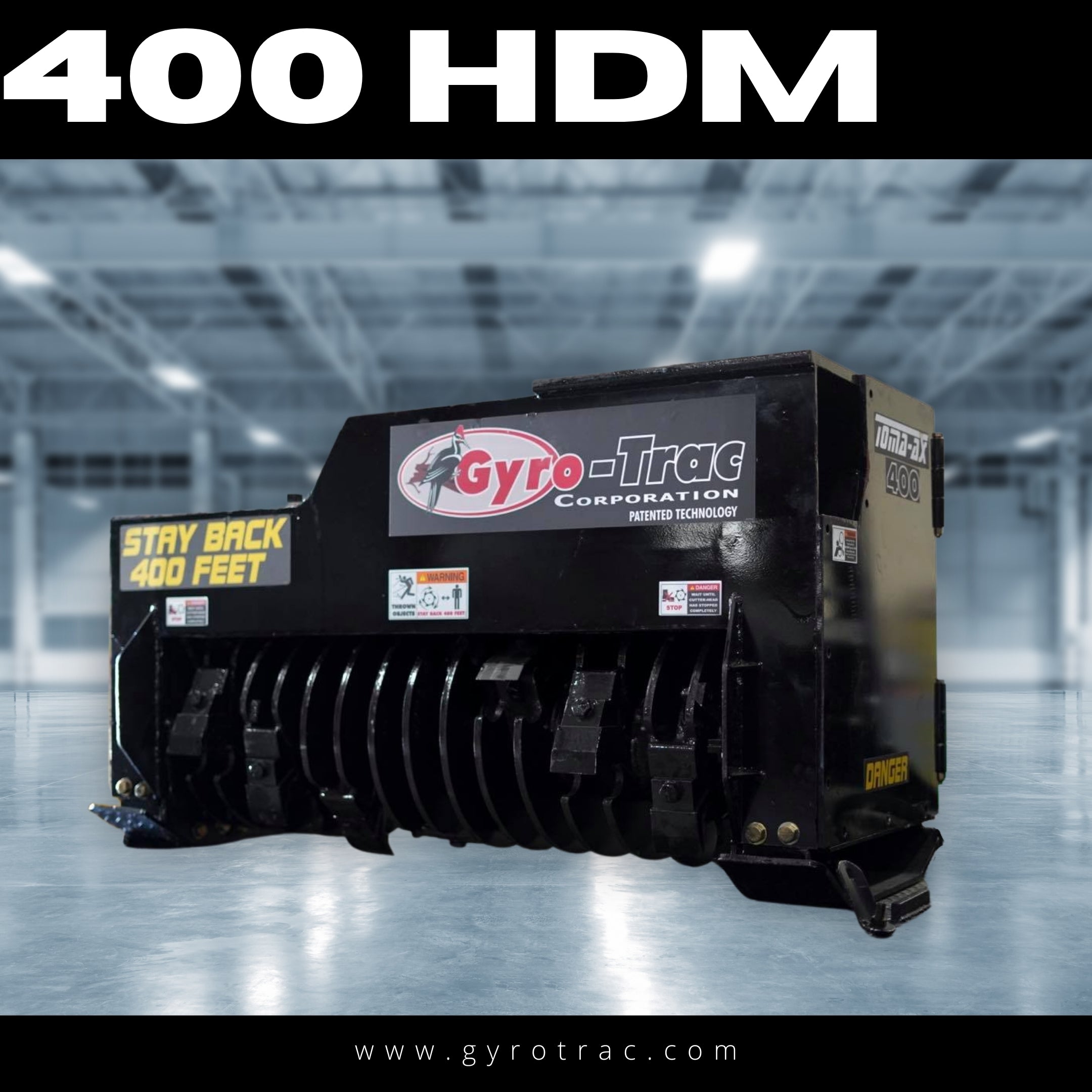

400 HDM Cutter-head

Regular price $0.00
/
Shipping calculated at checkout.

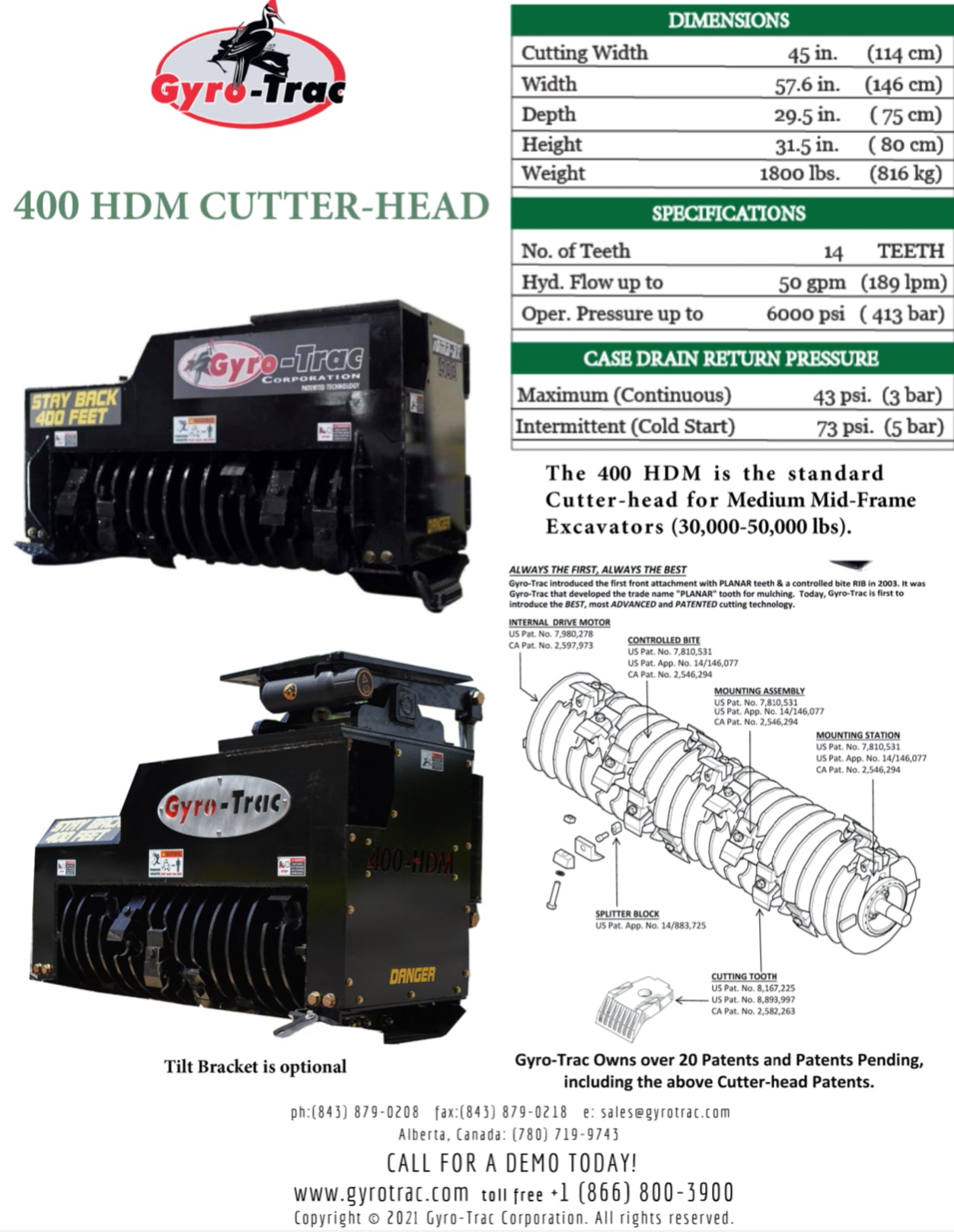

The 400 HDM is the standard Cutter-head for Medium Mid-Frame Excavators (30,000-50,000 lbs).


DIMENSIONS:

Cutting Width

45 in

114 cm

Width

57.6 in

146 cm

Depth

29.5 in

75 cm

Height

31.5 in

80 cm

Weight

1800 lbs

816 kg


SPECIFICATIONS:

No. of Teeth

14

TEETH

Hyd. Flow up to

50 gpm

189 lpm

Op Pressure up to

6,000 psi

413 bar


CASE DRAIN RETURN PRESSURE:

Max (continuous)

43 psi

3 bar

Intermittent

73 psi

5 bar

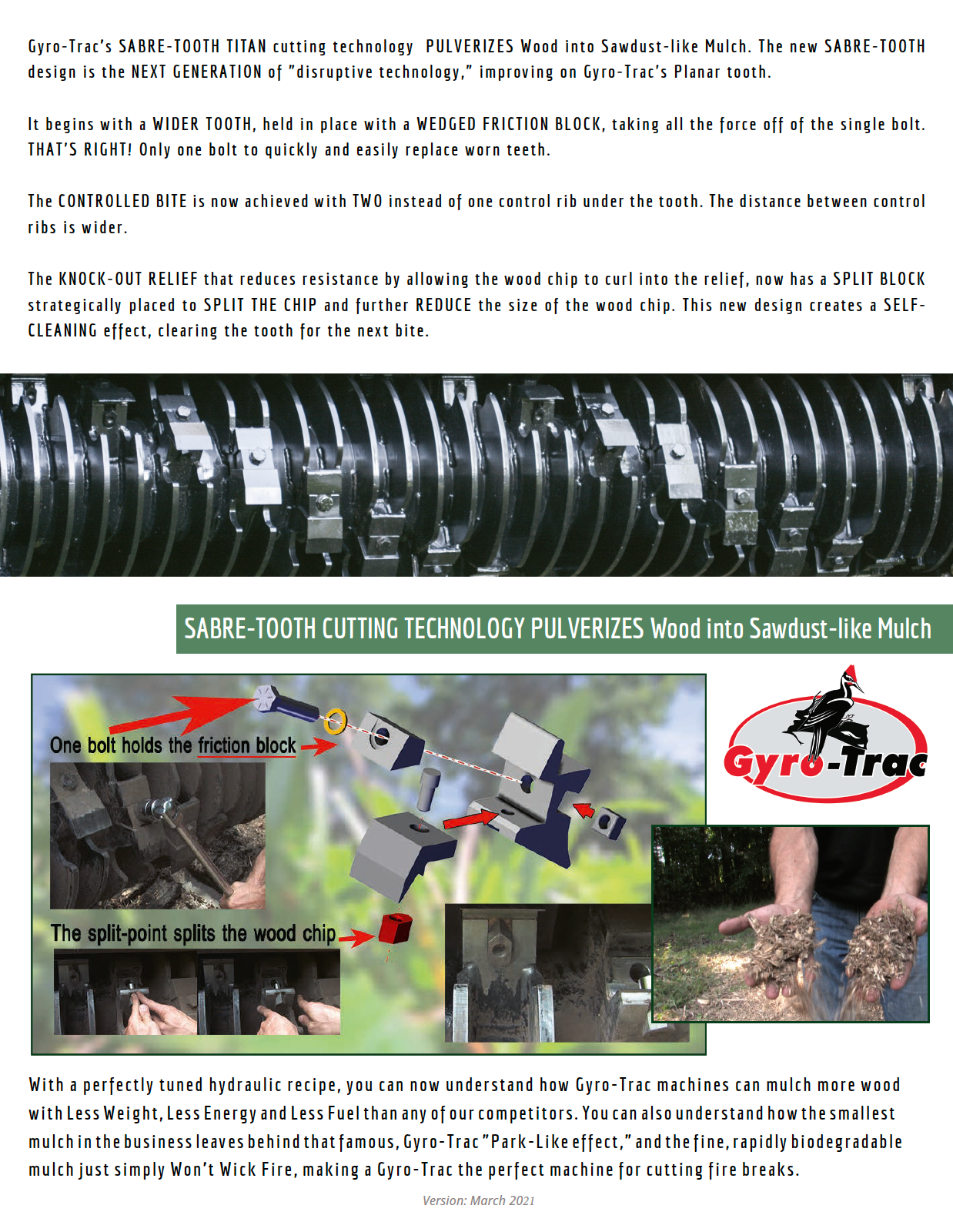

Gyro-Trac’s SABRE-TOOTH TITAN cutting technology PULVERIZES Wood into Sawdust-like Mulch. The new SABRE-TOOTH design is the NEXT GENERATION of "disruptive technology," improving on Gyro-Trac's Planar tooth.

It begins with a WIDER TOOTH, held in place with a WEDGED FRICTION BLOCK, taking all the force off of the single bolt. THAT'S RIGHT! Only one bolt to quickly and easily replace worn teeth.

The CONTROLLED BITE is now achieved with TWO instead of one control rib under the tooth. The distance between control ribs is wider.

The KNOCK-OUT RELIEF that reduces resistance by allowing the wood chip to curl into the relief, now has a SPLIT BLOCK strategically placed to SPLIT THE CHIP and further REDUCE the size of the wood chip. This new design creates a SELF-CLEANING effect, clearing the tooth for the next bite.
