Regular price $0.00
/
Shipping calculated at checkout.

THE ONLY HEAVY-DUTY CUTTER-HEAD ON THE MARKET THAT WEIGHS LESS THAN 1100 POUNDS AND CAN HANDLE HYDRAULIC FLOWS UP TO 40 GPM.

Designed for mini & medium excavators.


DIMENSIONS:

Cutting Width

27 3/4 in

71 cm

Width

36 3/4 in

93.3 cm

Depth

29 in

74 cm

Height

31 in

79 cm

Weight

1100 lbs

500 kg


SPECIFICATIONS:

No. of Teeth

Hyd. Flow up to

40 gpm

151 lpm

Oper. Pressure up to

5000 psi

345 bar

Tractor HP

60 - 116 HP

45 - 82 kw


CASE DRAIN RETURN PRESSURE:

Maximum (Continuous)

29 psi

2 bar

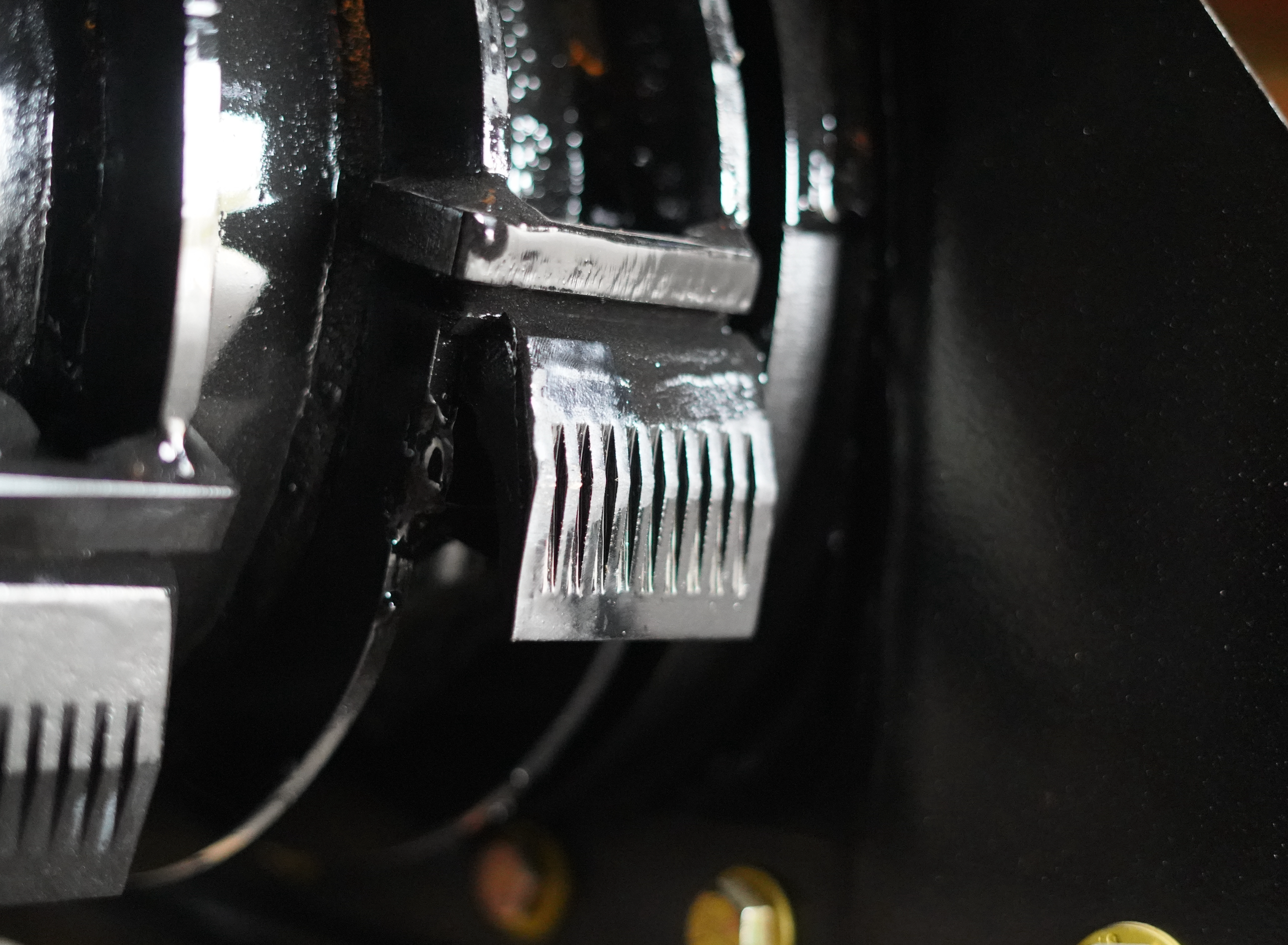

Gyro-Trac’s SABRE-TOOTH TITAN cutting technology PULVERIZES Wood into Sawdust-like Mulch. The new SABRE-TOOTH design is the NEXT GENERATION of "disruptive technology," improving on Gyro-Trac's Planar tooth.

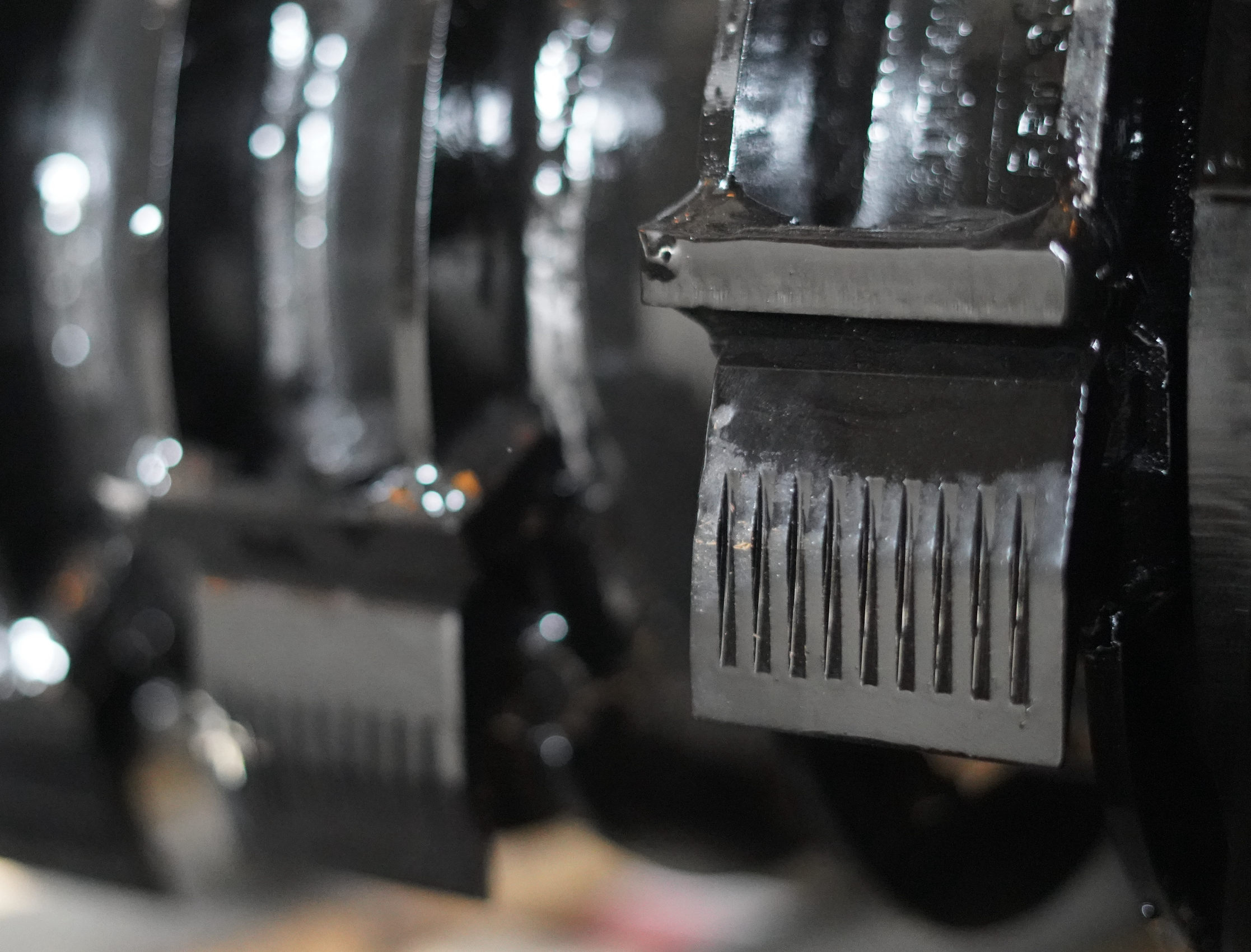

It begins with a WIDER TOOTH, held in place with a WEDGED FRICTION BLOCK, taking all the force off of the single bolt. THAT'S RIGHT! Only one bolt to quickly and easily replace worn teeth.

The CONTROLLED BITE is now achieved with TWO instead of one control rib under the tooth. The distance between control ribs is wider.

The KNOCK-OUT RELIEF that reduces resistance by allowing the wood chip to curl into the relief, now has a SPLIT BLOCK strategically placed to SPLIT THE CHIP and further REDUCE the size of the wood chip. This new design creates a SELF-CLEANING effect, clearing the tooth for the next bite.
