GT-35 XP Heavy Duty Mulcher

Regular price $0.00
/


With the GT-35 XP Heavy Duty Mulcher, you will cut more wood in less time than with any competitor in its class. With both Captive Track and Rugged Steel Track options, PRODUCTIVITY, PERFORMANCE & PROFITABILITY will become the hallmarks of your business.

Call for a demonstration today, and experience Gyro-Trac’s Performance Promise with the GT-35 XP Heavy Duty Mulcher.


  • Powerful, Reliable 365 HP Cummins STAGE V Turbo Diesel
  • NEXUS Touch Command & Control – Real-time, Cloud-based Connectivity: Monitor, Control, Troubleshoot, Diagnose, Communicate and Learn.
  • Low-profile Fully Enclosed Forward-tilt Cab
  • Pressurized Cab w/Comfortable Suspension Seat
  • Best in Class, Patented “Sabre Tooth” Cutting Technology – Pulverizes Wood into Sawdust
  • Patented Spiral Tooth Pattern, Creating Vacuum-like Effect
  • Dual Control Ribs to Control Cutting Bite, with Knockout Relief and Splitter Point to Expel and Refine Mulch
  • Hydraulic Cutter Head Guide Bar Extends to Assist Felling Trees
  • Six Exterior Lights & 15,000 lb. Winch
  • Super Low Ground Pressure Captive Track, or Aggressive & Rugged Steel Track Options

GT-35 XP Dimensions

Captive Track Dimensions

- Overall Length: 221 in (561 cm)
- Overall Width: 102¼ in ( 260 cm)
- Overall Height: 119 in (302 cm)
- Operating Weight: 23,500 lbs (10,659Kg)
- Ground Pressure: 3.5 psi (.24 bar)
- Ground Clearance: 14½ in (37 cm)
- Maximum Speed: 7.5 mph (12 kmh)

Steel Track Dimensions

- Overall Length: 234 in (594 cm)
- Overall Width: 102¼ in ( 260 cm)
- Overall Height: 119 in (302 cm)
- Operating Weight: 29,500 lbs (13,380Kg)
- Ground Pressure: 3.9 psi (.27 bar)
- Ground Clearance: 14½ in (37 cm)
- Maximum Speed: 3.5 mph (5.63 kmh)


GT-35 XP Undercarriage

The GT-35 comes standard with NEXUS service module, connected to the world's most advanced cloud-based service platform.

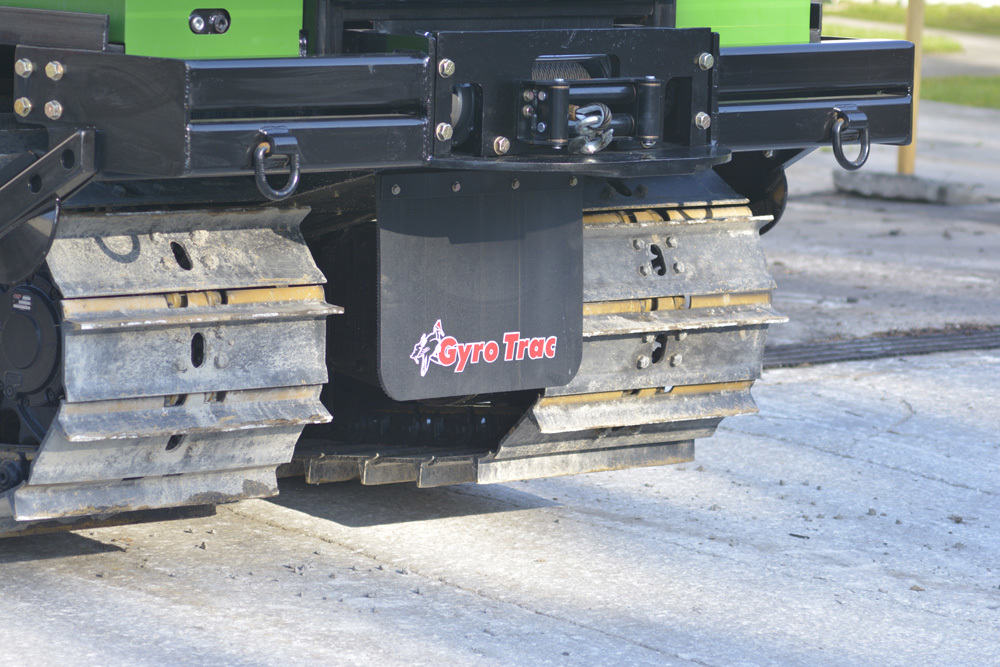

Captive Track

- 4 Tandem, Duel Wheel Carriage Trucks w/Solid Rubber Wheel Combinations
- Total number of Wheels: 16 (8 for each side)
- Belts: 3 Belts, Each Side, 6-Ply Rubber
- Cross Links: 28 in. (71 cm) Heat Treated, 78 per track, 156 Total
- Belt Tensioners: Greased Filled, 4000 psi (27579 kPa)

STEEL Track Dimensions

- Standard Steel Track Assembly, Custom Fit for the GT-35 XP


Engine & Fuel

MAKE

Cummins STAGE V Turbo Diesel

MODEL

L9, Stage V

HORSEPOWER

365 hp @ 2100 RPM

TORQUE

1151 ft-lbs @ 1400 RPM

FUEL CONSUMPTION

19 US gal. (367 liters)

FUEL CAPACITY

97 gal/hr


700 HF CUTTER-HEAD

30 TEETH, 92" (229 CM) CUT

WIDTH

102 IN (259 CM)

DEPTH

34 (86 CM)

HEIGHT

63 IN (160 CM)

WEIGHT

5,180 LBS (2,355 KG)

HYD FLOW UP TO

120 gpm (454 lpm)

OP. PRESSURE UP TO

6,000 PSI


Steel Constructed Cab

ROPS - Roll Over Protection System

ISO 8082 & CSA B352.0

FOPS - Falling Object Protection System

ISO 8083 & G608

OPS - Operator Protection System

ISO 8084

Forward Tilt Cab Jack

Raised-Cab Electric Pump Motor

Windows

Lexan (tm) MR-10

HVAC

3-speed

Seat

Adjustable suspension with armrests & seatbelt


Gyro-Trac’s SABRE-TOOTH TITAN cutting technology PULVERIZES Wood into Sawdust-like Mulch. The new SABRE-TOOTH design is the NEXT GENERATION of "disruptive technology," improving on Gyro-Trac's Planar tooth.

It begins with a WIDER TOOTH, held in place with a WEDGED FRICTION BLOCK, taking all the force off of the single bolt. THAT'S RIGHT! Only one bolt to quickly and easily replace worn teeth.

The CONTROLLED BITE is now achieved with TWO instead of one control rib under the tooth. The distance between control ribs is wider.

The KNOCK-OUT RELIEF that reduces resistance by allowing the wood chip to curl into the relief, now has a SPLIT BLOCK strategically placed to SPLIT THE CHIP and further REDUCE the size of the wood chip. This new design creates a SELF-CLEANING effect, clearing the tooth for the next bite.
